The Best Solutions for Pressure, Temperature, Flow and Level.
No other automation manufacturer has developed fluid sensor technology that detects all four measured variables: flow, pressure, temperature and level with a sensor family from a single source.

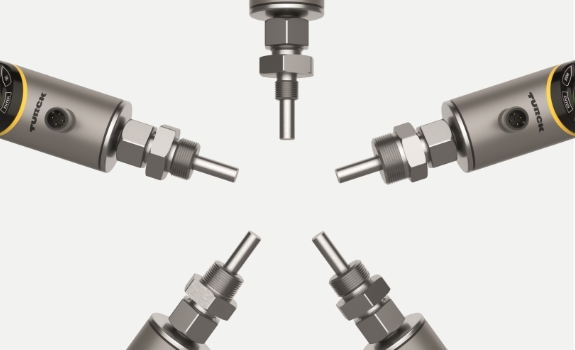

An intuitive operating concept across all devices makes commissioning and handling easier than ever before. No mechanical buttons means we are able to offer an extremely rugged housing with an IP69K rating. Modular process connections ensure easy integration across the family. The sensors provide additional information for condition monitoring or sensor-to-cloud solutions via IO-Link.
Fluid+ – the next-generation sensor family.
FS+ Flow Sensors
- Integrated temperature measurement eliminates the need for an additional sensor in simple applications
- Delta flow monitoring for reliable commissioning, even in the case of fluctuations in flow
- Quick-Teach for rapid commissioning
TS+ Temperature Sensors
- Compact devices with an integrated sensor or remote devices with attached sensor unit
- Compatible with thermocouple probes
- Automatic detection of the probe type TC or Pt.
PS+ Pressure Sensors

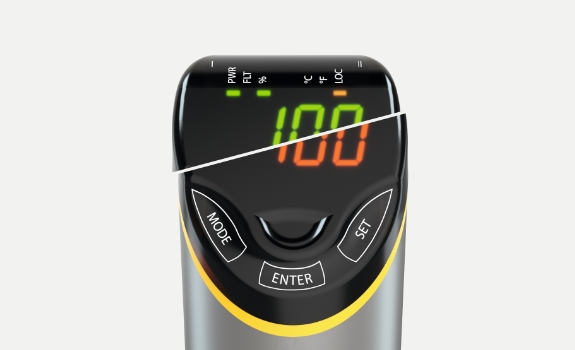

- 2-color display indicates when the setpoint is exceeded by changing color to red
- Variants for differential pressure measurement with one sensor
- Devices with ceramic measuring cell or fully welded metal measuring cell for overpressure resistance up to seven times the nominal pressure
LUS+ Level Sensor
- LUS211 ultrasonic sensor for smaller tanks up to 1.30 meters measuring distance
- Continuous, non-contact measurement

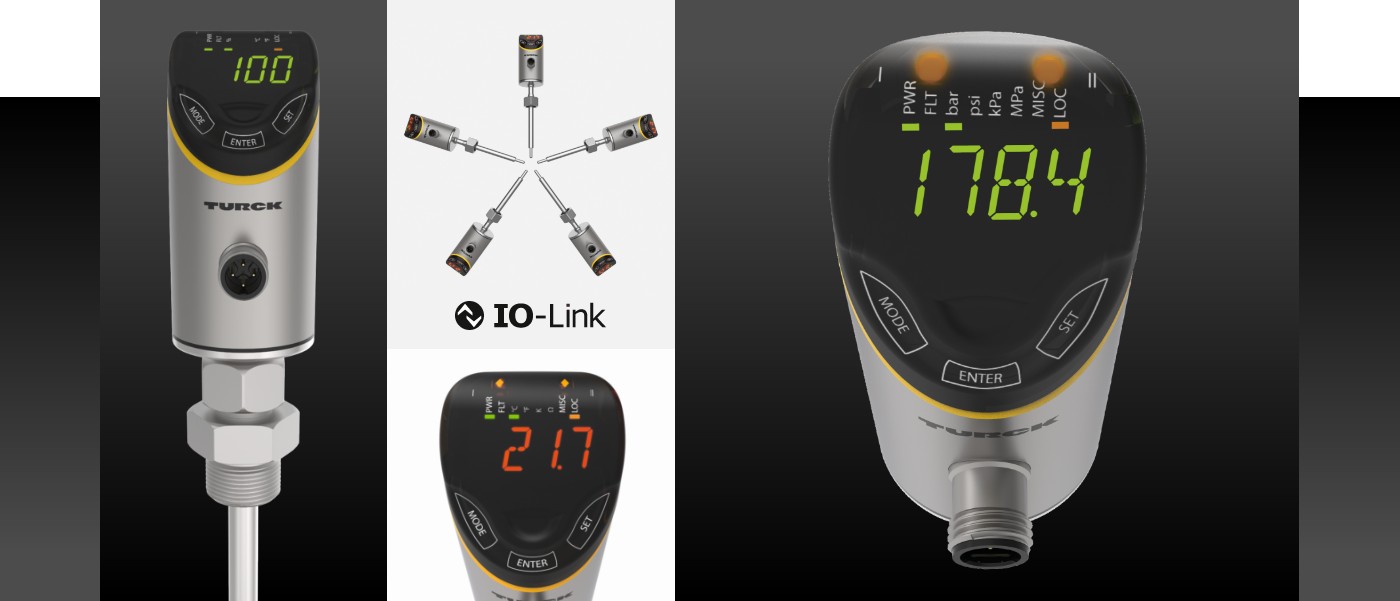

Four Sensors – One Operating Concept
The philosophy behind the Fluid+ sensor platform is uniformity. Everything that can be designed uniformly is implemented uniformly. This creates resources for unique, innovative solutions that make each of the sensors better than individual devices.
Unique Family Features
The Fluid+ family is rugged, simple to connect, flexible and easy to use.
↵
Simple commissioning

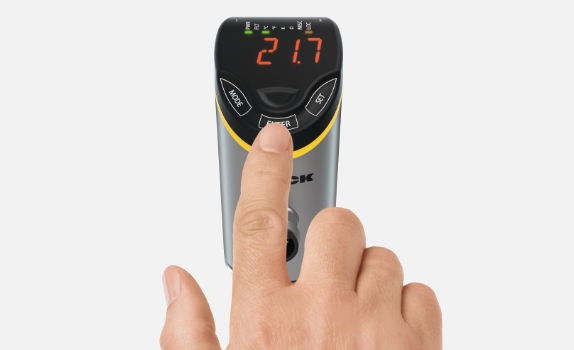

- Uniform operating concept with capacitive buttons and gesture control
- Automatic NPN/PNP detection
↵
Sensor-to-cloud
- IO-Link 1.1 for transferring additional data for condition monitoring or predictive maintenance
- Seamless integration to Cloud solutions enables sensor-to-cloud without programming
- Switching behavior can be set to normally open or normally closed
Maximum flexibility
- 340-degree rotating sensor head enables optimal positioning without adapting the process connection
- Data profiles of other sensor manufacturers can be emulated for a smooth transition to Fluid+ devices
↵
High system availability
- Rugged due to IP69K and no need for mechanical buttons
- Locking mechanism prevents system downtime due to sensor manipulation
- The materials used are resistant to UV radiation and salt spray for outdoor applications

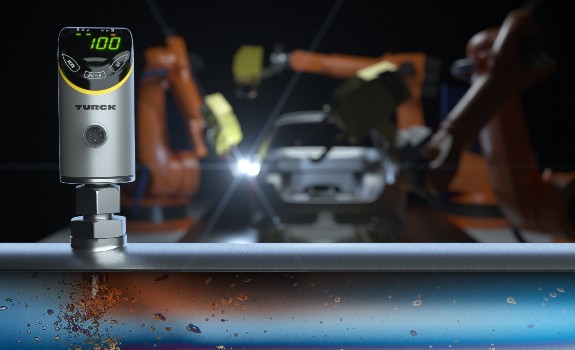

Fluid+ White Paper
Concise answers to specific questions about automated fluid detection and monitoring can be found in our Fluid+ family white papers.

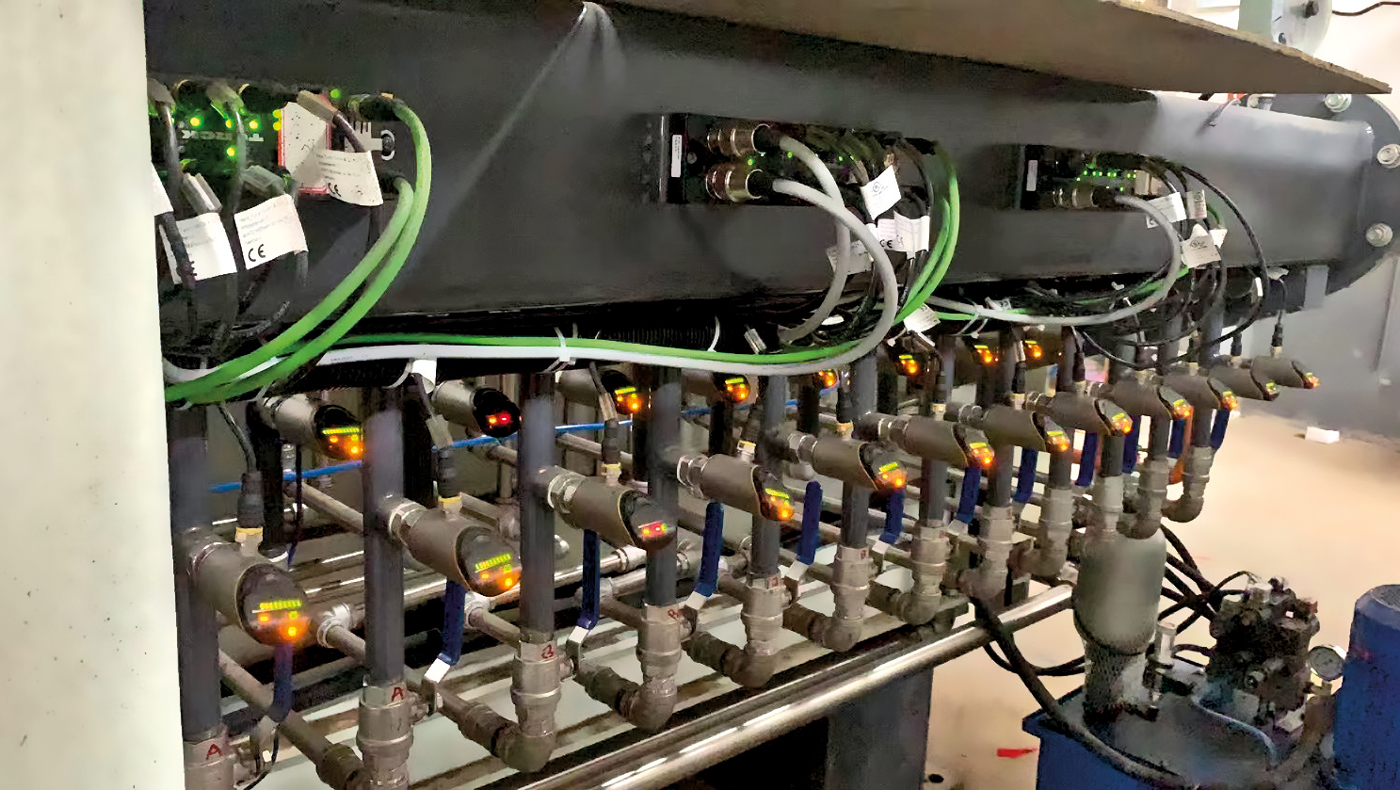

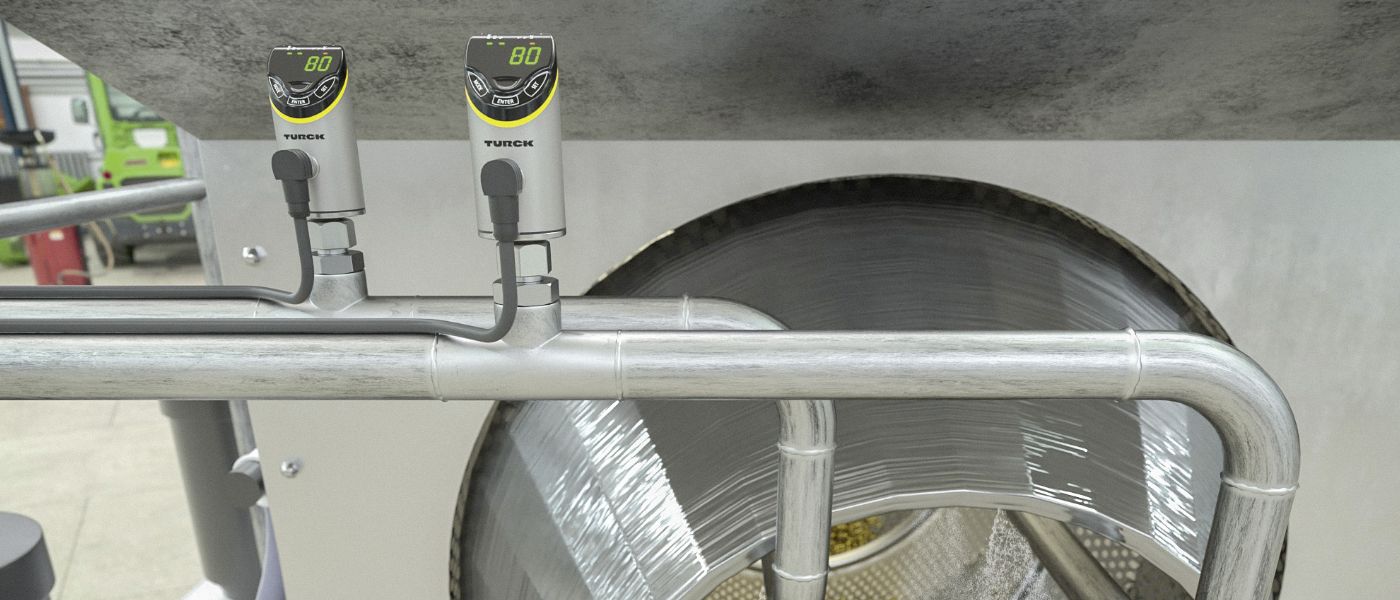

Fluid+ Sensor Applications
The applications show how users benefit from the advantages of the Fluid+ sensor family – reducing downtime, maintenance and costs
Wide Range of Solutions for a Wide Range of Applications

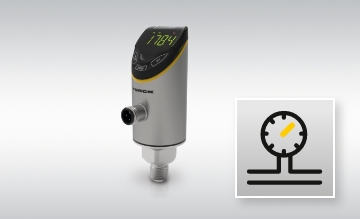

PS+ pressure sensors
The PS+ series is designed for pressure ranges up to 600 bar and is available with proven ceramic measuring cells (PS310) as well as metal measuring cells (PS510). The differential pressure variant with dual process connection makes it easier to record pressure differences with one device.

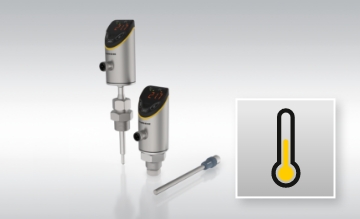

TS+ temperature sensors
The TS+ sensors are available as TS700 compact units with an integrated temperature sensor or as TS720 with a separate evaluation and display unit for connecting resistance thermometers or thermocouples. The sensor automatically detects which type of temperature sensor is connected.

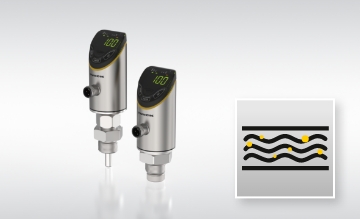

FS+ flow sensors
The FS+ ensures reliable and fast commissioning with the Quick-Teach and Delta-Flow-Monitoring functions. In addition to the flow, it can also output media temperature values, which in many applications eliminates the need for additional temperature sensors.

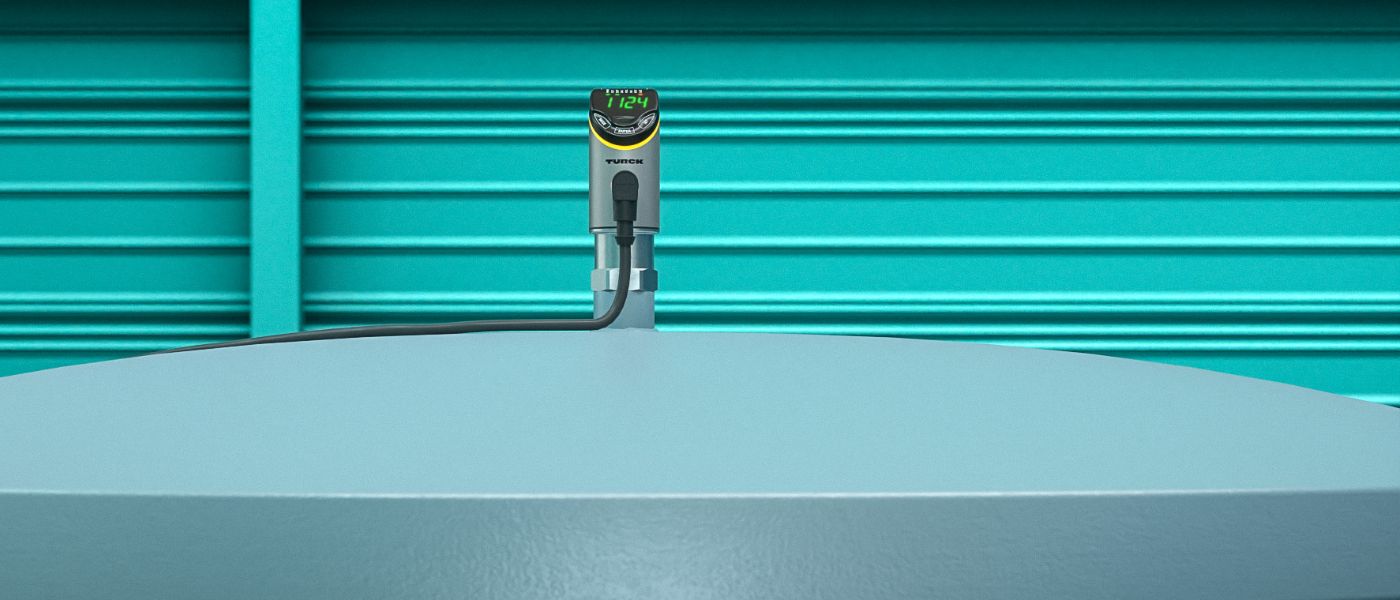

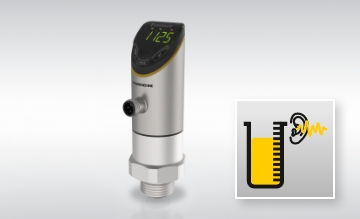

LUS+ ultrasonic level sensors
THE LUS+ reliably records levels in the range of up to 0.4 or 1.3 meters. It can withstand pressures from 0.5 to 5 bar at the process connection. The measured values can be displayed and output as residual volumes in a user-friendly way by assigning parameters to the existing container geometry.

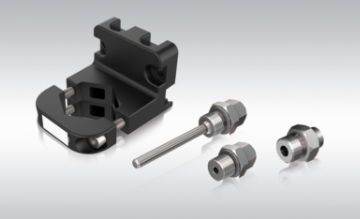

Fluid+ accessories
The comprehensive range of accessories for the Fluid+ platform shows that this device family has been consistently thought through. Our product database contains matching mounting brackets, protective tubes, cooling sections, connecting cables and much more for each individual product.
