Product  TW-R50-B128

Tag

HF

Order number: 6900504
    • The tags must undergo adequate stress tests within the proposed temperature processes before deployment.
    • The following stress test was performed on this tag:
      Cyclic temperature stress: 5 min at -40 °C – 5 min at 90 °C
      Number of tested cycles: 100, transition period: 30 seconds
      Continuous load: 140 °C for 100 hours
    • This successfully performed test does not imply suitability for a specific application, but merely serves as proof of the basic usability.
    • EEPROM, memory 128 byte
    • Not for direct mounting on metal
#

General data

Preferred type 5
eCl@ss-Code (V5.1.4): 27280401 -/- Identification RFID
Customs tariff number 85235110000
Country of origin MY
Weight 10 g

Technical Data

Technology HF (13.56 MHz)
Memory type EEPROM
Design Hard tag

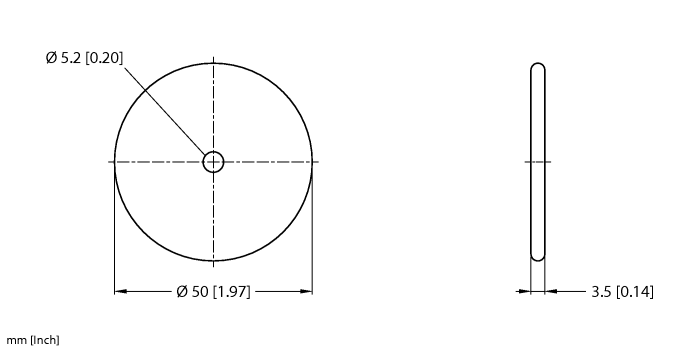

Housing diameter Ø  50  mm
Mounting Metal-free
Memory 128  Byte
Freely usable memory 112  Byte
Housing material Plastic, PA6
Active area material Plastic, PA6, black
Temperature during read/write access -40…+85 °C
Temperature outside detection range -45…+85 °C
Protection class IP69K
