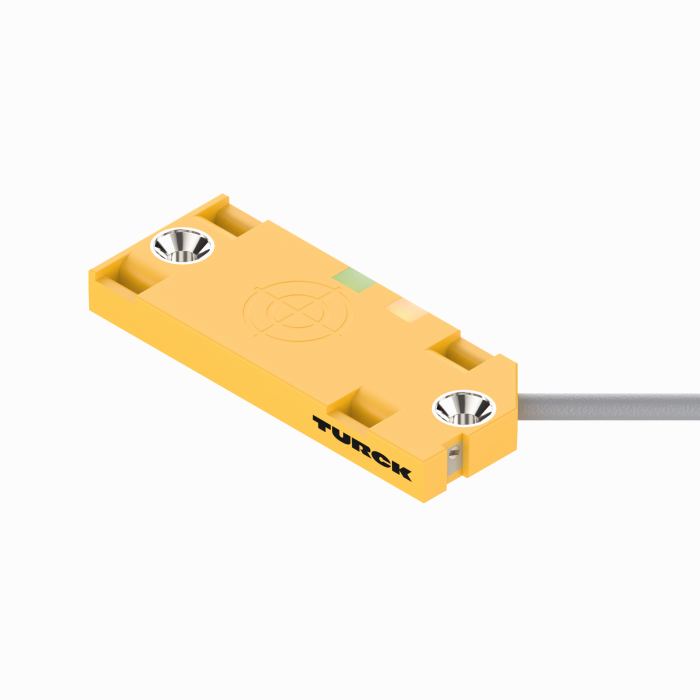

Product  BC10-QF5.5-AP6X2

Capacitive Sensor

Ident. no.: 2620117
    • Rectangular, height 5.5 mm
    • Large active face, marked for correct installation
    • Plastic, PP
    • Fine adjustment via potentiometer
    • DC 3-wire, 10…30 VDC
    • NO contact, PNP output
    • Cable connection
#

General data

EAN 4047101149470
eCl@ss-Code (V5.1.4): 27270102 -/- Capacitive proximity switch
Customs tariff number 85365019900
Country of origin CH
Weight 38 g

Technical Data

Design Rectangular
Construction size 54 x 20.3 x 5.5 mm, QF5.5
Rated switching distance 10 mm
Operating voltage 10…30 VDC
Output function NO contact, PNP
Electrical connection Cable
Cable length (L) 2.0  m
Housing material Plastic, PP
Ambient temperature -25…+70 °C
Protection class IP67
Approvals cULus
