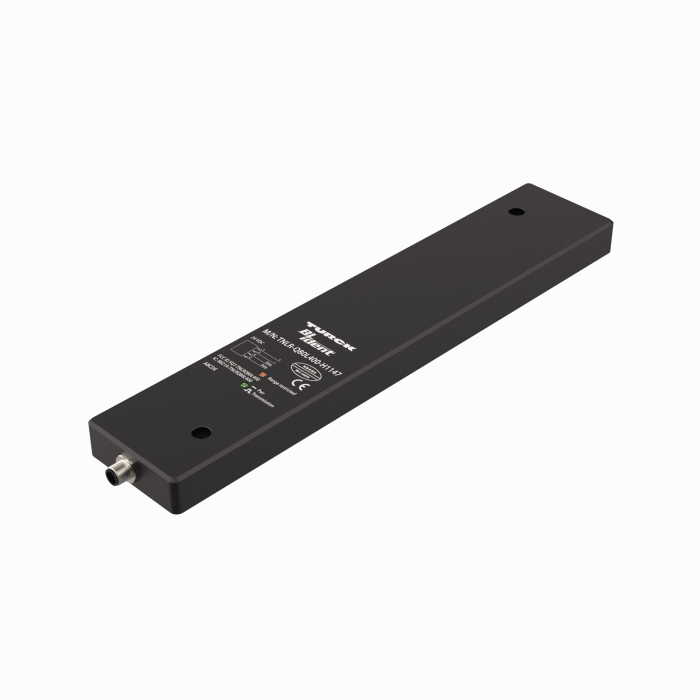

Product  TNLR-Q80L400-H1147

HF Read/Write Device

Ident. no.: 7030204
    • For roller conveyors
    • Rectangular, 80 x 400 mm, height 25 mm
    • Active face on top
    • Plastic, PBT‐GF30‐V0

General data

EAN 4047101206869
eCl@ss-Code (V5.1.4): 27280401 -/- Identification RFID
Customs tariff number 84719000000
Country of origin DE
Weight 1218 g

Technical Data

Technology HF (13.56 MHz)
Radio communication and protocol standards ISO 15693, NFC Typ 5
Design Rectangular

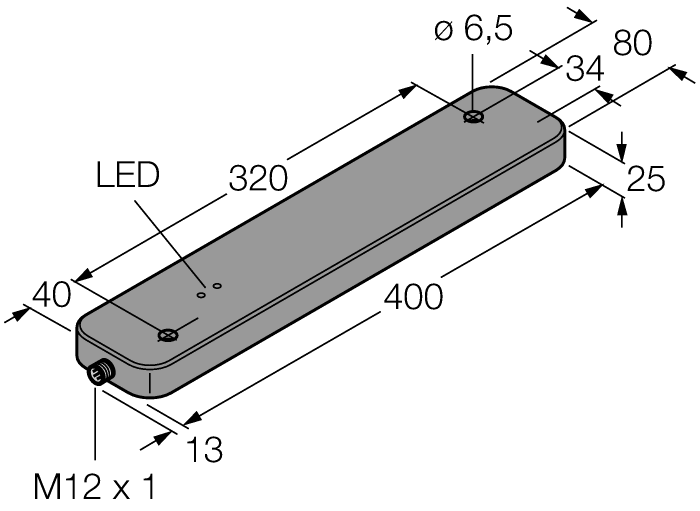

Construction size 400 x 80 x 25 mm, Q80L400
Read/Write distance max. 345 mm
Mounting Non-flush
Fieldbus Protocol Connection to RFID interface
Ambient temperature -25…+70 °C
Protection class IP67
