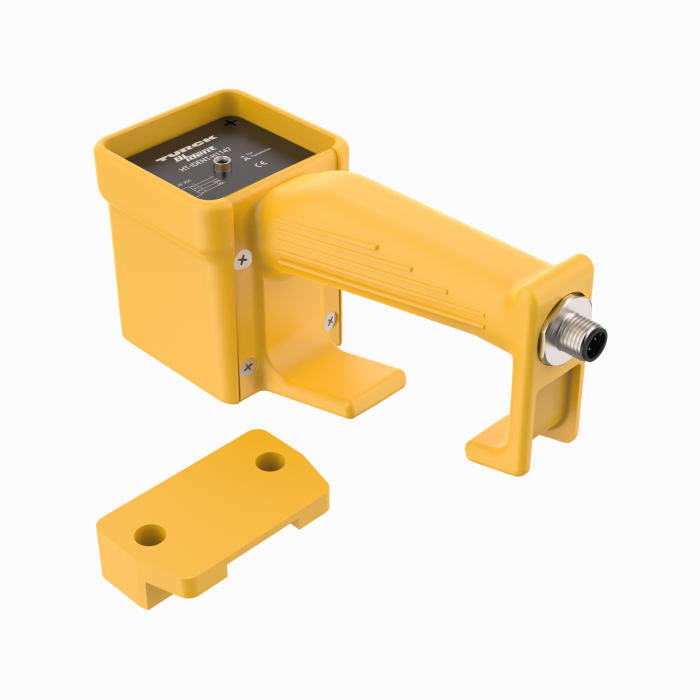

Product  HT-IDENT-H1147

HF Read/Write Device

For Manual Operation

Ident. no.: 7030236

General data

EAN 4047101206951
eCl@ss-Code (V5.1.4): 27280401 -/- Identification RFID
Customs tariff number 85365080900
Country of origin DE
Weight 585 g

Technical Data

Technology HF (13.56 MHz)
Radio communication and protocol standards ISO 15693, NFC Typ 5
Design Grip

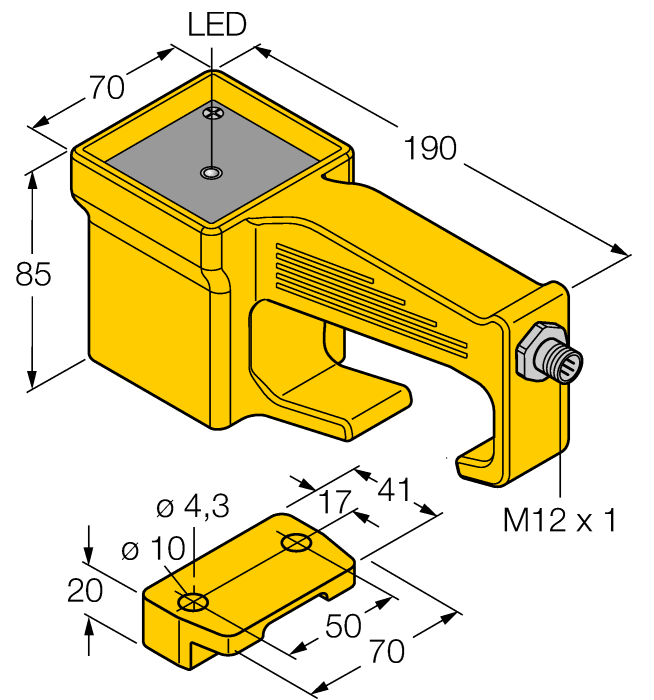

Construction size 190 x 70 x 85 mm, HT-IDENT
Read/Write distance max. 115 mm
Mounting Non-flush
Fieldbus Protocol Connection to RFID interface
Ambient temperature -25…+70 °C
Protection class IP67

Data Sheets

CAD File

CAD file


Configuration Manual

Manufacturer's Declaration

Quick Start Guide
