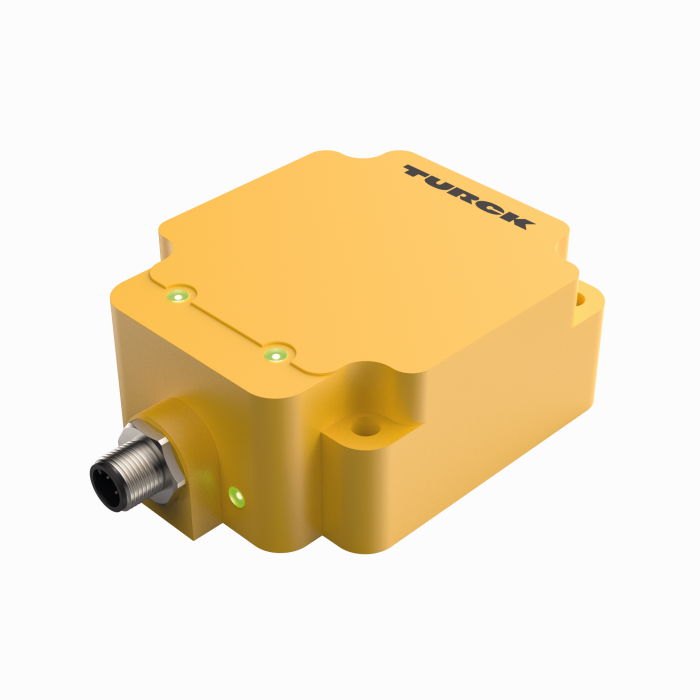

Product  TN-Q80-H1147

HF Read/Write Head

Ident. no.: 7030007
    • Rectangular, height 40 mm
    • Active face on top
    • Plastic, PBT-GF30-VO
    • Powered and operated only via connection to BL ident interface module
    • M12 × 1 connector, connection only via BL ident extension cable
#

General data

EAN 4047101115017
eCl@ss-Code (V5.1.4): 27280401 -/- Identification RFID
Customs tariff number 84719000000
Country of origin DE
Weight 311 g

Technical Data

Technology HF RFID
Radio communication and protocol standards ISO 15693, NFC Typ 5
Design Rectangular

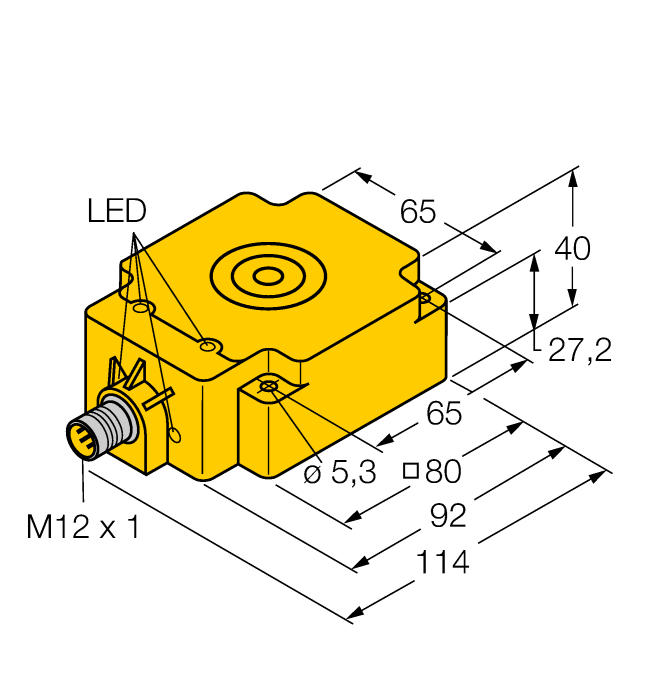

Construction size 92 x 80 x 40 mm, Q80
Read/Write distance max. 146 mm
Mounting Non-flush
Fieldbus Protocol Connection to RFID interface
Housing material Plastic, PBT-GF30-V0, Yellow
Ambient temperature -25…+70 °C
Protection class IP67
