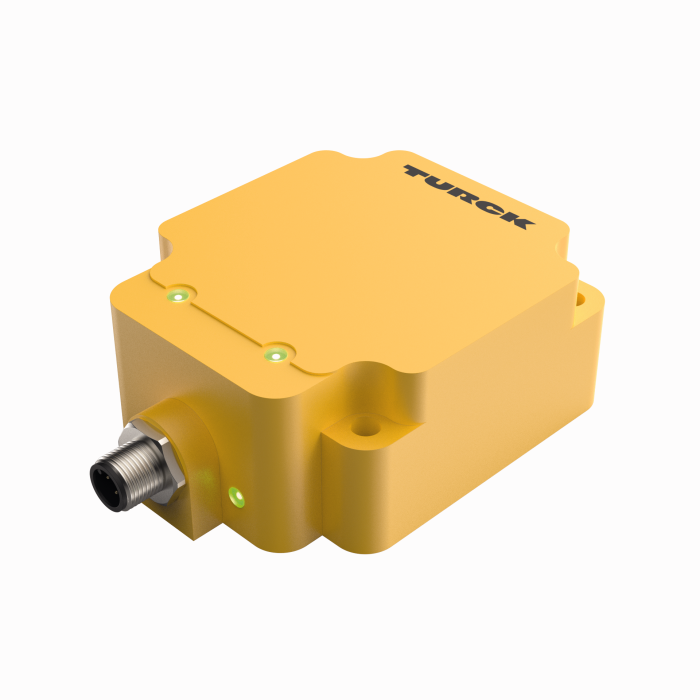

Product  TNLR-Q80-H1147-EX

HF Read/Write Device

For Explosion Hazardous Areas

Ident. no.: 7030303
    • Rectangular, height 40 mm
    • Active face on top
    • Plastic, PBT-GF30-VO
    • ATEX category II 3 G, Ex zone 2
    • ATEX category II 3 D, Ex zone 22
#

General data

EAN 4047101228380
eCl@ss-Code (V5.1.4): 27280401 -/- Identification RFID
Customs tariff number 84719000000
Country of origin DE
Weight 340 g

Technical Data

Technology HF RFID
Radio communication and protocol standards ISO 15693, NFC Typ 5
Design Rectangular

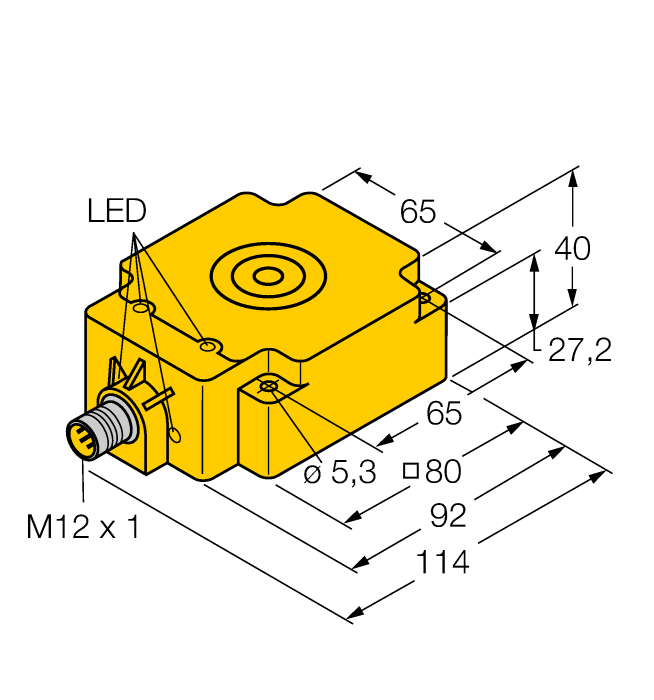

Construction size 92 x 80 x 40 mm, Q80
Read/Write distance max. 165 mm
Mounting Non-flush
Fieldbus Protocol Connection to RFID interface
Housing material Plastic, PBT-GF30-V0, Yellow
Ambient temperature -25…+70 °C
Protection class IP67
Approvals ATEX II 3G, ATEX II 3D
