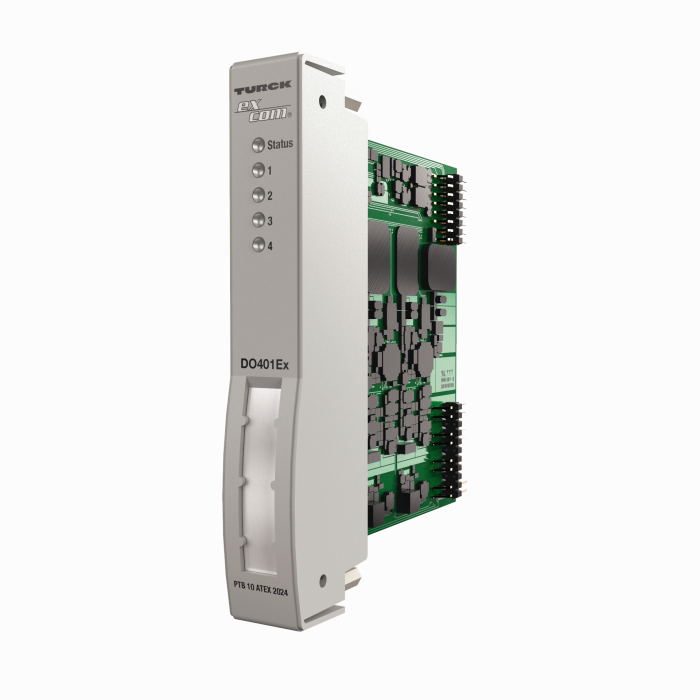

Product DO401EX
excom I/O System
Output Module, Digital, 4-channel
Ident. no.: 6884203- Output module for intrinsically safe actuators
- Complete galvanic isolation
General data
| EAN | 4047101250008 |
| eCl@ss-Code (V5.1.4): | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 85389099990 |
| Country of origin | DE |
| Weight | 130 g |
Technical Data
| Fieldbus Protocol | PROFIBUS-DP |
| Signal type | Digital output |
| Connection technology signal | Screw terminal, Cage clamp terminal |
| Product Family | excom |
| Device type | I/O Module |
| Protection class | IP20 |
| Approvals | ATEX, IECEx, cFMus, TR CU, KOSHA, INMETRO, DNV GL, BV, LR |
| Ambient temperature | -20…+70 °C |
Data Sheets
Approval
| PTB 10 ATEX 2024 | 4646 KB |
| IECEx PTB 12.0016 | 183 KB |
| EC declaration of conformity | 600 KB |
| KOSHA 13-AV4BO-0132 | 714 KB |
| DNV GL - Type Approval Certificate | 112 KB |
Configuration File
| GSD-Dateien | 249 KB |
| EtherNet/IP CIP bridging | 254 KB |
| EtherNet/IP consolidated IO | 9 KB |
| GSDML files | 80 KB |
Manual
| Remote I/O excom | 11650 KB |
| Integration into Honeywell Experion via PROFIBUS-DP | 10000 KB |
| Application guidelines, strain gauge measurement with excom | 262 KB |
