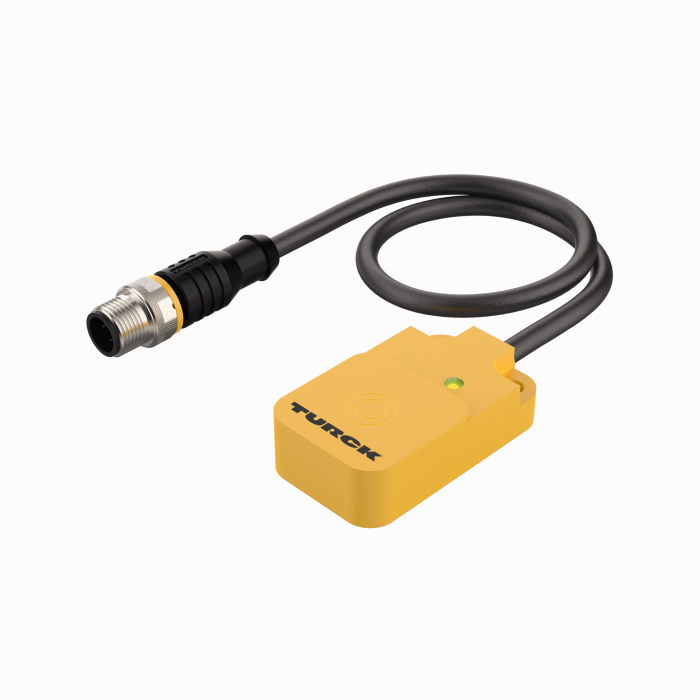

Product  TN-Q14-0.15-RS4.47T

HF Read/Write Device

Ident. no.: 7030235
    • Rectangular, height 14 mm
    • Active face on top
    • Plastic, PBT-GF30-VO
#

General data

EAN 4047101206944
eCl@ss-Code (V5.1.4): 27280401 -/- Identification RFID
Customs tariff number 84719000000
Country of origin DE
Weight 62 g

Technical Data

Technology HF (13.56 MHz)
Radio communication and protocol standards ISO 15693, NFC Typ 5
Design Rectangular

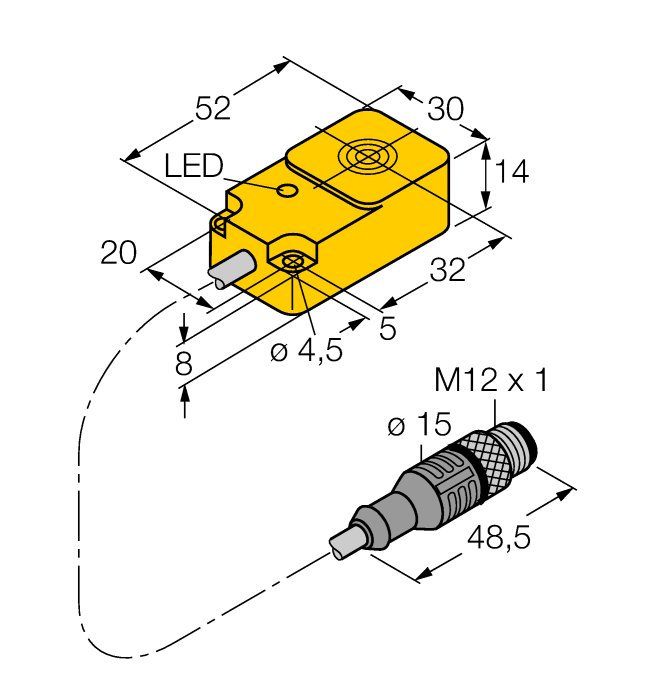

Construction size 56 x 30 x 14 mm, Q14
Read/Write distance max. 72 mm
Mounting Non-flush
Fieldbus Protocol Connection to RFID interface
Ambient temperature -25…+70 °C
Protection class IP67
