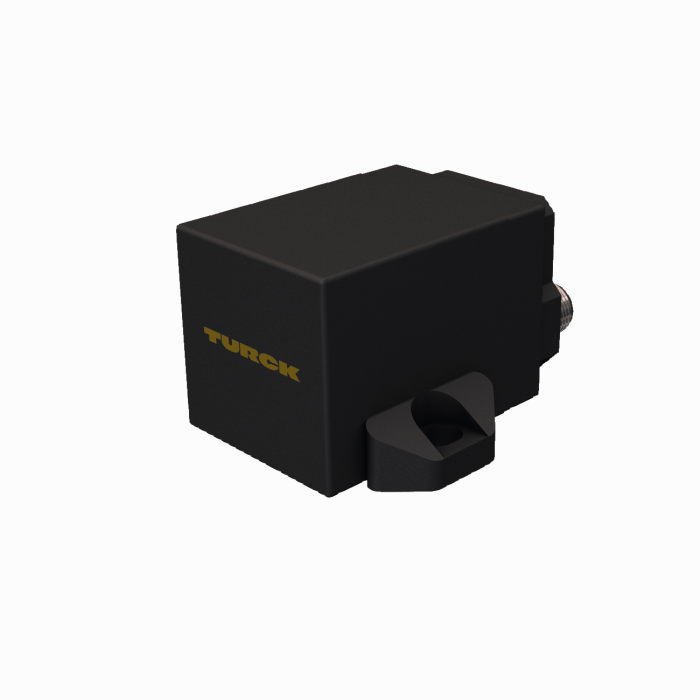

Product  TNSLR-Q42TWD-H1147

HF Read/Write Head

Ident. no.: 7030424
    • Rectangular, height 42.5 mm
    • Active face on top
    • Plastic, PA12-GF30
    • Powered and operated only via connection to BL ident interface module
    • M12 × 1 connector, connection only via BL ident extension cable

General data

EAN 4047101261042
eCl@ss-Code (V5.1.4): 27280401 -/- Identification RFID
Customs tariff number 84719000000
Country of origin DE
Weight 146 g

Technical Data

Technology HF RFID
Radio communication and protocol standards ISO 15693, NFC Typ 5
Design Rectangular

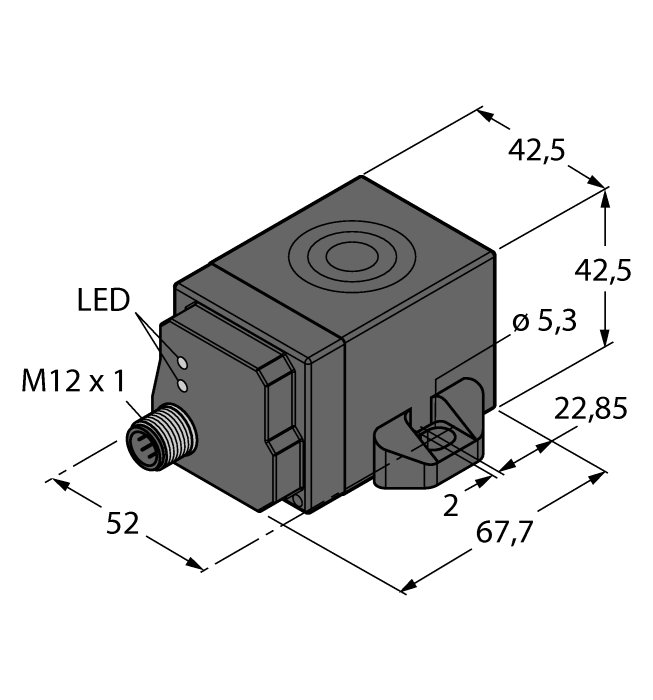

Construction size 67.7 x 42.5 x 42.5 mm, Q42
Read/Write distance max. 215 mm
Mounting Non-flush
Fieldbus Protocol Connection to RFID interface
Housing material Plastic, PA12-GF30, Black
Ambient temperature -25…+70 °C
Protection class IP68/IP69K
