Product  NI50U-Q42TWD-VP6X-H1141

Inductive Sensor

For the Food Industry

Ident. no.: 1538306
    • Rectangular, height 42.5 mm
    • Active face on top
    • Plastic, PA12-GF30
    • Factor 1 for all metals
    • Resistant to magnetic fields
    • Auto-compensation protects against pre-damping
    • Partially embeddable
    • Extended temperature range
    • High protection class IP69K for harsh environments
    • Protection against all common acidic and alkaline cleaning agents
    • Laser engraved label, permanently legible
    • Suitable for applications in the food industry
    • DC 4-wire, 10…30 VDC
    • Changeover contact, PNP output
    • M12 x 1 male connector
#

General data

EAN 4047101264326
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019900
Country of origin DE
Weight 127 g

Technical Data

Design Rectangular

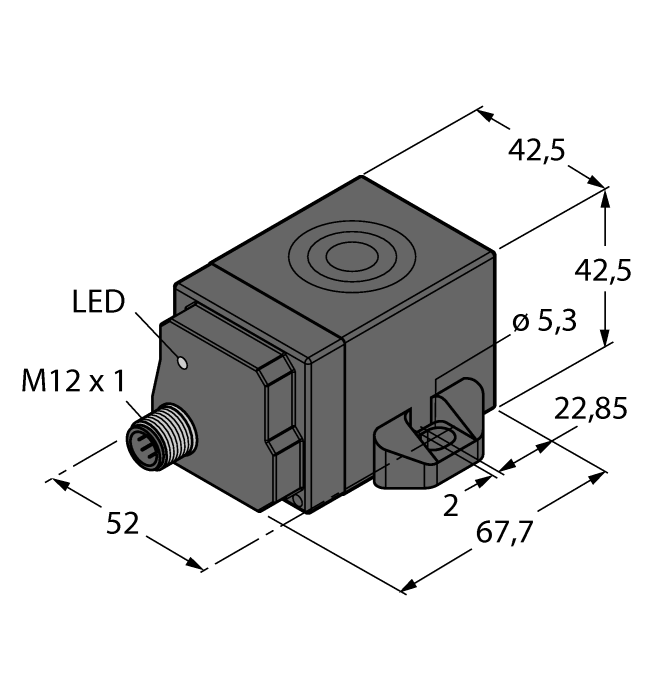

Construction size 67.7 x 42.5 x 42.5 mm, Q42
Rated switching distance 50 mm
Mounting Non-flush
Operating voltage 10…30 VDC
Output function Complementary contact, PNP
Switching frequency 0.250 kHz
Electrical connection Connector, M12 × 1
Housing material Plastic, PA12-GF30, Black
Ambient temperature -40…+100 °C
Protection class IP68/IP69K
Special features uprox+, Factor 1, Resistant to magnetic fields
