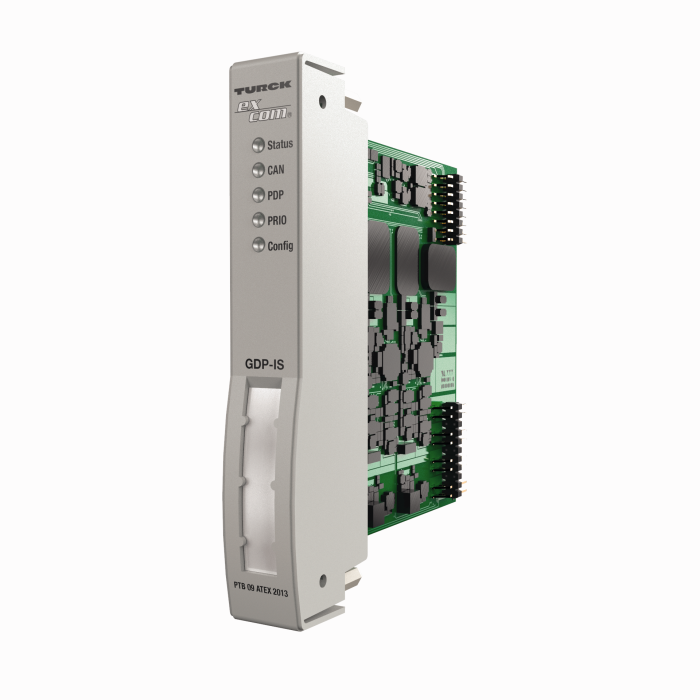

Product GDP-IS/FW2.3
excom I/O System
PROFIBUS-DP Interface
Ident. no.: 6884275- Intrinsically safe gateway for PROFIBUS-DPV1
- Connection of the excom station to the PROFIBUS
- Baud rate max. 1.5 Mbps
- PROFIBUS interface acc. to PROFIBUS user organization (PNO) with RS485-IS layer
General data
| EAN | 4047101350036 |
| eCl@ss-Code (V5.1.4): | 27250312 -/- Communication interface, active |
| Customs tariff number | 85389099990 |
| Country of origin | DE |
| Weight | 132 g |
Technical Data
| Fieldbus Protocol | PROFIBUS-DP |
| Connection technology signal | Screw terminal, Cage clamp terminal |
| Device type | Gateway |
| Fieldbus transmission rate | 9.6 kbps …1.5 Mbps |
| Ambient temperature | -20…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, cFMus, cFM, IECEx, CCC, KOSHA, EAC Ex, DNV GL, BV, LR, KR, KCC, UKCA, CE |
Data Sheets
Approval
CAD File
Configuration File
Firmware
Manual
Product Catalog
Product Overview
Quick Start Guide
Connectivity accessories
|

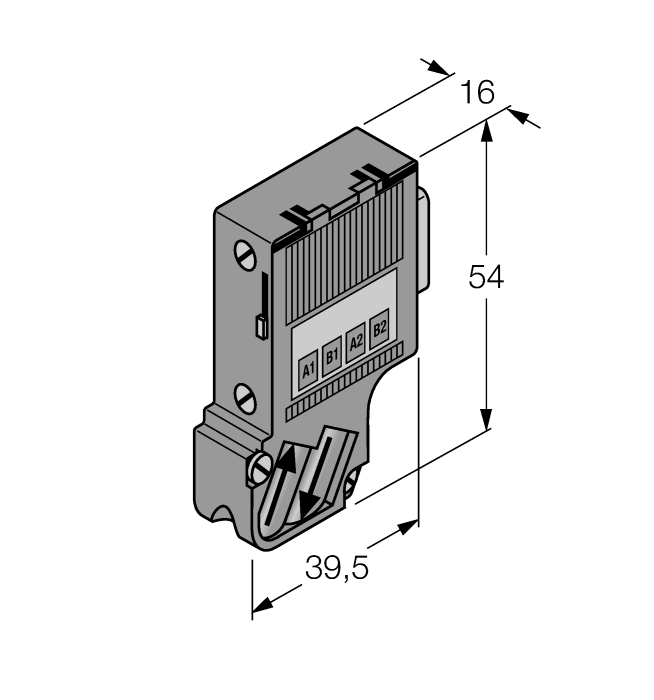

D9T-RS485IS /6ES7972-0DA60-0XA0
PROFIBUS bus connector for RS485-IS, Fast Connect, only for use with IS devices! |
6890944 |
