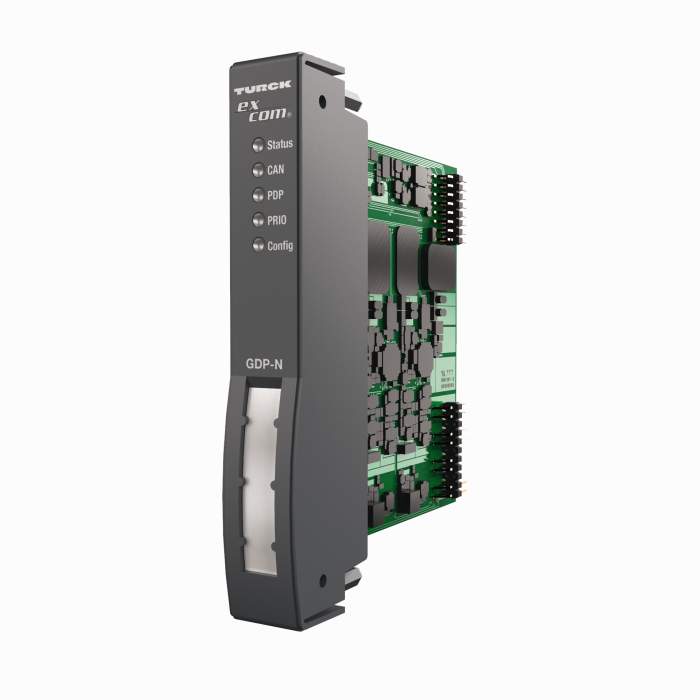

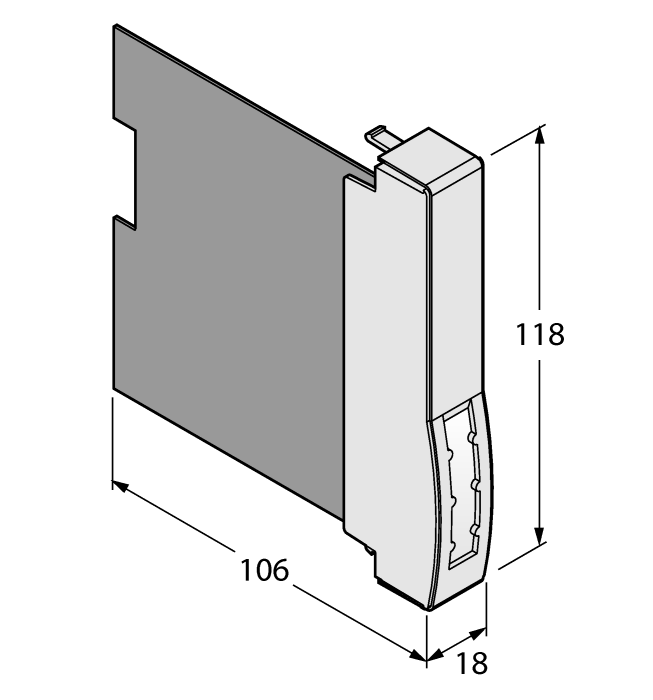

Product GDP-N/FW2.3

Zoom
Zoom

excom I/O System

PROFIBUS-DP Interface

Ident. no.: 6884277

Gateway for PROFIBUS-DPV1 communication
Connection of the excom station to the PROFIBUS
Baud rate max. 1.5 Mbps
PROFIBUS interface acc. to PROFIBUS user organization (PNO)

Hide All Open All

Specifications
Download
Accessories
CAD

General data

EAN	4047101350050
eCl@ss-Code (V5.1.4):	27250312 -/- Communication interface, active
Customs tariff number	85389099990
Country of origin	DE
Weight	134 g

Technical Data

Fieldbus Protocol	PROFIBUS-DP
Connection technology signal	Screw terminal, Cage clamp terminal
Device type	Gateway
Fieldbus transmission rate	9.6 kbps …1.5 Mbps
Ambient temperature	-40…+70 °C
Protection class	IP20
Approvals	ATEX, cFMus, cFM, IECEx, CE

Data Sheets

English	353 KB

Approval

TÜV 21 ATEX 8643 X	1542 KB
IECEx TUR 21.0012X	340 KB
FM23US0051X	939 KB
FM23CA0037X	974 KB
JPEX	244 KB

CAD File

2D (DWG)	69 KB
3D-1 (STP)	82 KB

Configuration File

GSD-Dateien	278 KB

Firmware

Firmware file	4433 KB

Manual

Remote I/O excom	5098 KB
Integration into Honeywell Experion via PROFIBUS-DP	10000 KB
Application guidelines, strain gauge measurement with excom	262 KB
Integration into ABB AC800M via PROFIBUS-DP	961 KB
Integration into Yokoagawa via PROFIBUS-DP	4653 KB

Product Catalog

I/O solutions for the control cabinet	16192 KB

Product Overview

excom I/O system	18172 KB

Quick Start Guide

GDP-N	576 KB

Connectivity accessories

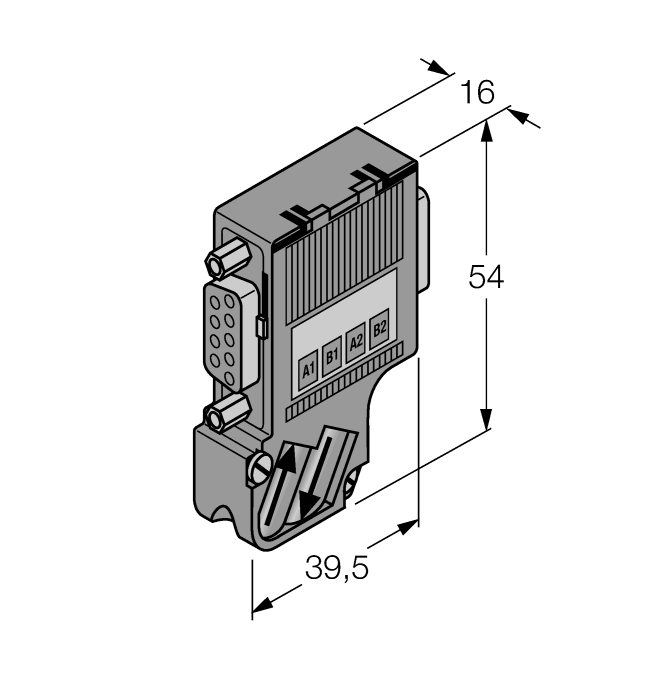

	D9T-RS485PG /6ES7972-0BB61-0XA0 PROFIBUS bus connector for RS485, Fast Connect, with PG gland, 35° outlet	6890943

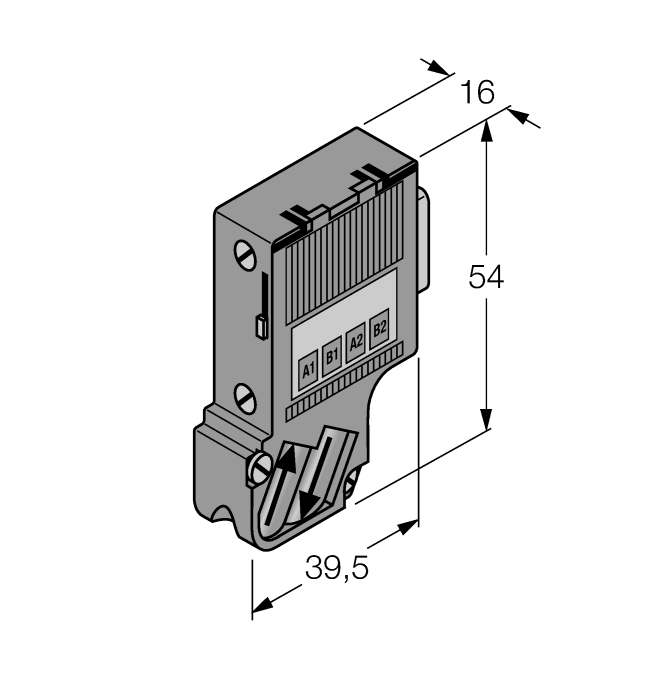

	D9T-RS485 /6ES7972-0BA61-0XA0 PROFIBUS bus connector for RS485, Fast Connect, with PG gland, 35° outlet	6890942
