Product NI3-EH04F-AN6X
Inductive Sensor
Stainless Steel Front
Ident. no.: 100002320- Smooth barrel, Ø 4 mm
- Stainless steel 1.4305 (AISI 303)
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- Cable connection
General data
| EAN | 4047101461480 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | CH |
| Weight | 34 g |
Technical Data
| Design | Smooth barrel |

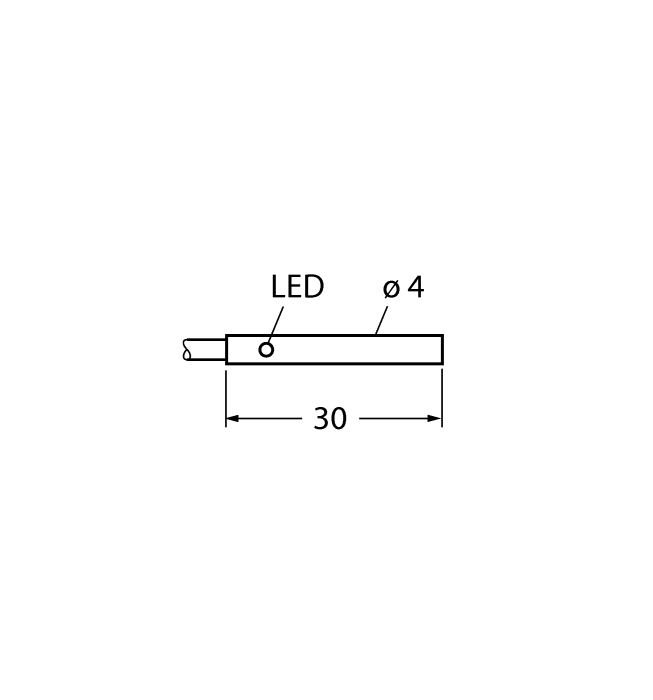

| Construction size | Ø 4 mm |
| Rated switching distance | 3 mm |
| Mounting | Non-flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, NPN |
| Switching frequency | 1.20 kHz |
| Electrical connection | Cable |
| Housing material | Stainless steel, 1.4305 (AISI 303) |
| Ambient temperature | -25…+80 °C |
| Protection class | IP67 |
| Special features | All-metal sensor, Pressure resistant |
