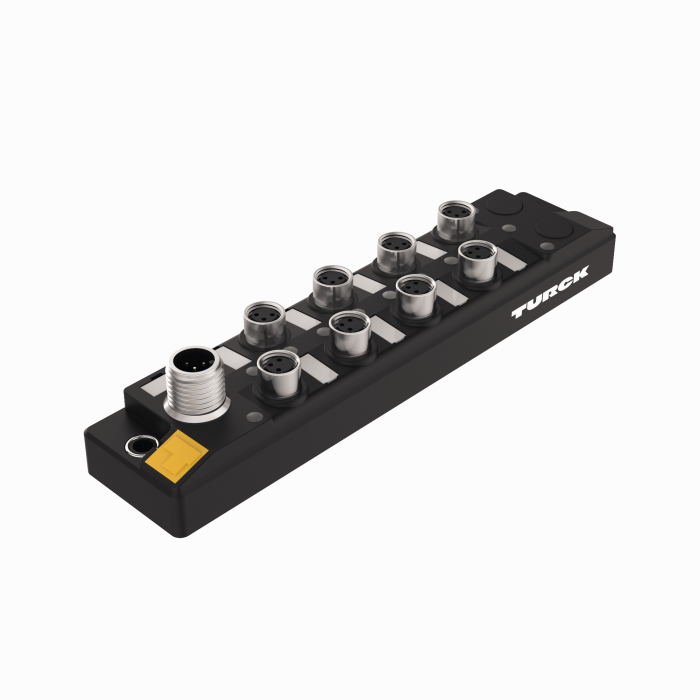

Product  TBIL-S3-8DIP

I/O Hub for connection of digital signals to IO-Link Master

8 Digital Inputs, 8 M8 Ports

Ident. no.: 100002594
    • Glass fiber reinforced housing
    • Shock and vibration tested
    • Fully potted module electronics
    • Protection classes IP65, IP67, IP69K
#

General data

EAN 4047101465686
eCl@ss-Code (V5.1.4): 27250307 -/- Technology module (periphery)
Customs tariff number 85176200000
Country of origin DE
Weight 160 g

Technical Data

Fieldbus Protocol IO-Link
Signal type Digital input
Connection technology signal M12
Device type I/O hub, I/O Module, Compact station
Ambient temperature -40…+70 °C
Protection class IP65/IP67/IP69K
Approvals cULus

Data Sheets

Configuration File

Instructions for Use

Manual

Manufacturer's Declaration

Technical Support Document (TSD)
