Product  LRS510-10-34-LI2UPN8-H1141

Radar Sensor

Level Control

Ident. no.: 100012730
    • Range: 10 m
    • Blind zone: 35 cm
    • Resolution: 1 mm
    • Cone angle of the radar beam: ±5°
    • Distance, level, volume or % output
    • Approved according to ETSI 305550-2
    • Approved according to FCC/CFR. 47 Part 15.
    • Male connector, M12 × 1, 4-pin
    • Operating voltage 18…33 VDC
    • Switching output switchable between PNP/NPN
    • Analog output switchable between 4…20 mA/0…10 V
    • Automatic current/voltage detection
    • IO-Link
    • 4-digit, 2-colored, 14-segment display
    • Housing is rotatable by 180° after mounting the process connection
    • Process connection NPT 3/4"
    • Pressure resistance -1…16 bar rel.
#
Hide All Open All

General data

EAN 4047101514520
eCl@ss-Code (V5.1.4): 27200505 -/- Radar level measurement
Customs tariff number 9026102040
Country of origin DE
Weight 441 g

Technical Data

Function Radar scanner
Design With display (integrated probe)
Construction size 132.3 x 38 x 50.2 mm, LRS
Range 350…10000 mm
Frequency range 122 - 123 GHz
Beam angle 10°
Operating voltage 17…33 VDC
Switching element function NO/NC programmable
Output function PNP/NPN, analog output
Voltage output 0…10 V
Current output 4…20 mA
Communication protocol IO-Link
Electrical connection Connector, M12 × 1
Process connection 3/4″ NPT
Housing material Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 PEEK
Ambient temperature -25…+65 °C
Protection class IP67/IP69K

Functional accessories

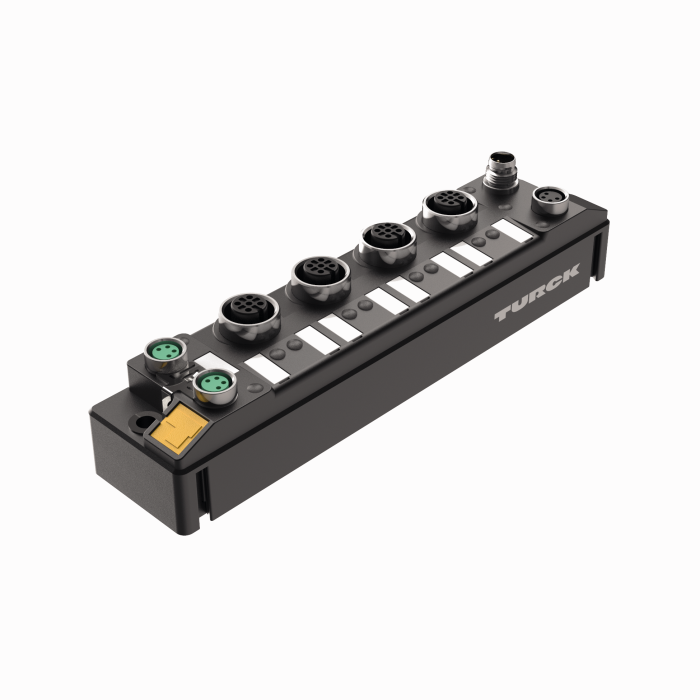

TBEN-S2-4IOL

Compact multiprotocol I/O module, 4 IO-Link Master 1.1 Class A, 4 universal PNP digital channels 0.5 A

 6814024
