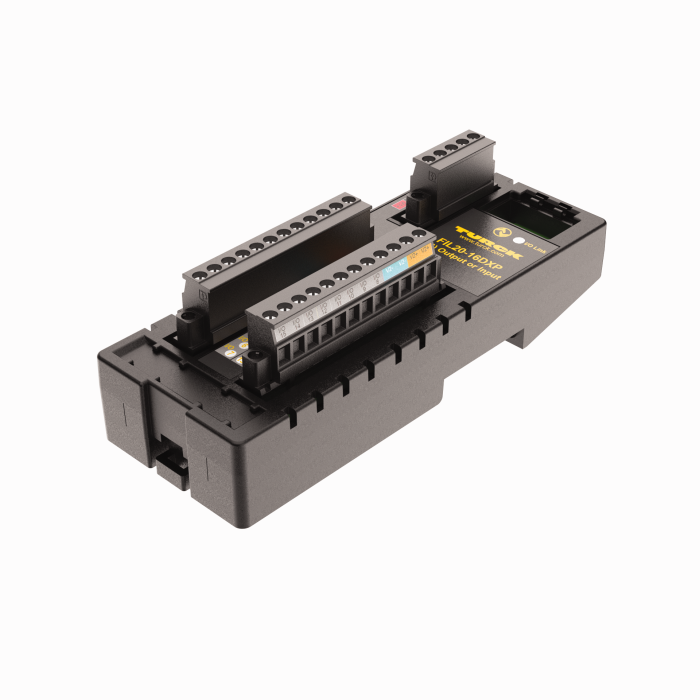

Product FIL20-16DXP
I/O Hub for connection of digital signals to IO-Link Master
16 Universal Digital Channels, PNP
Ident. no.: 100028254- Rugged, I/O hub in IP20
- Metal screw terminal connectors
- 16 universal digital channels, DI/DO
- 24 VDC, PNP
- Output current: 500 mA
- I&M Data Sets Support Installation and Maintenance
- IO-Link Diagnostics for Short-Circuit and Supply Voltage
- For mounting on a DIN rail
General data
| EAN | 4047101645460 |
| Customs tariff number | 8534000020 |
| Country of origin | DE |
| Weight | 1100 g |
Technical Data
| Fieldbus Protocol | IO-Link |
| Signal type | Digital output, Digital input, Digital input/output |
| Connection technology signal | Screw terminal |
| Device type | I/O hub, I/O Module, Compact station |
| Fieldbus connection technology | Screw terminals |
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
