Product WCIOL-6GPM-75NPT-H1151

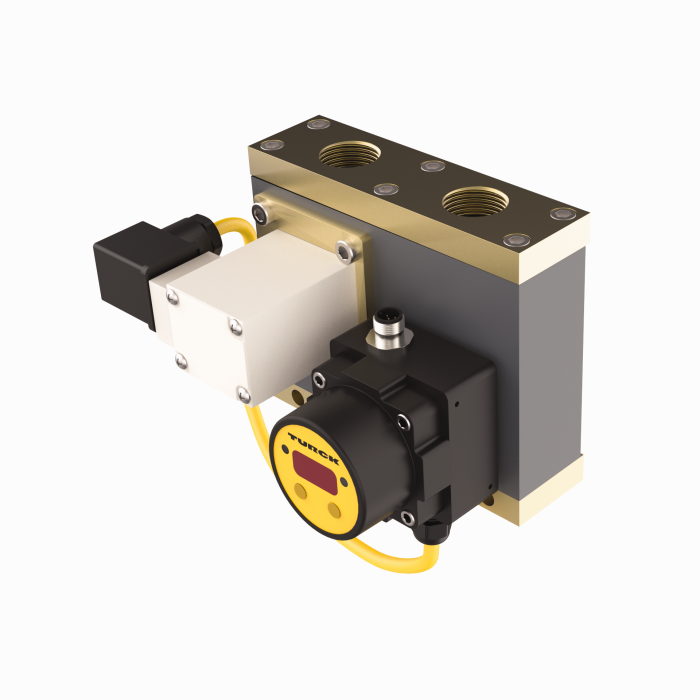

IO-Link Water Flow Control Block for Welding Stations
Ident. no.: 100039258- Joint installation creates a drop-in water-saving system.
- Simplified setup identifies peak drop and insufficient flow to the welding equipment.
- Standalone application: No PLC or robot logic circuit required.
- Flow range 0.6 to 6.0 gpm
- Solid-state SPDT relay for alarm output
- M12 male connector, 5-pin, for communication
- Four ¾″ NPT ports for the process connection
- IP67
