Product NI60-K90SR-VP4X2-B1141
Inductive Sensor
Ident. no.: 1564092- Rectangular, height 60 mm
- Plastic, PBT‐GF30‐V0
- DC 4-wire, 10…65 VDC
- Changeover contact, PNP output
- 7/8" male connector
General data
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 826.13 g |
Technical Data
| Design | Rectangular |

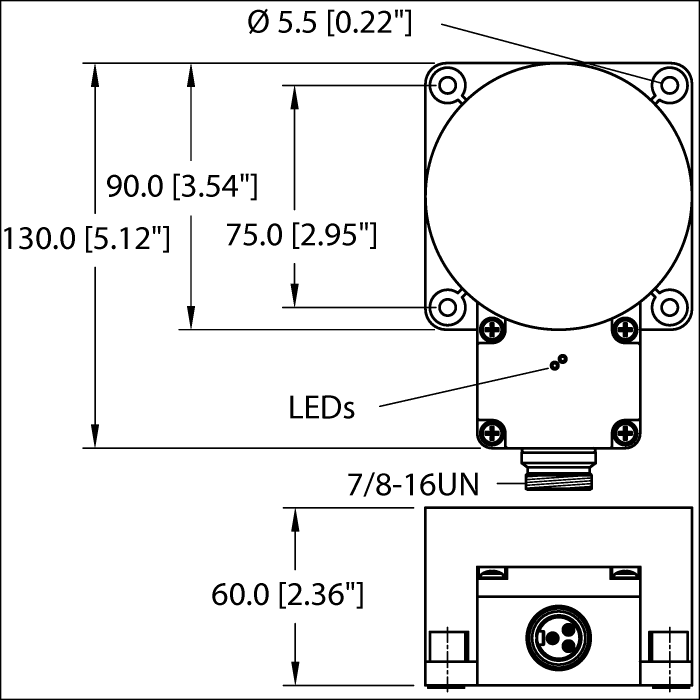

| Construction size | 130 x 75 x 60 mm, K90SR |
| Rated switching distance | 60 mm |
| Mounting | Non-flush |
| Operating voltage | 10…65 VDC |
| Output function | Complementary contact, PNP |
| Switching frequency | 0.060 kHz |
| Electrical connection | Connector, 7/8″ |
| Housing material | Plastic, PBT-GF30-V0 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
