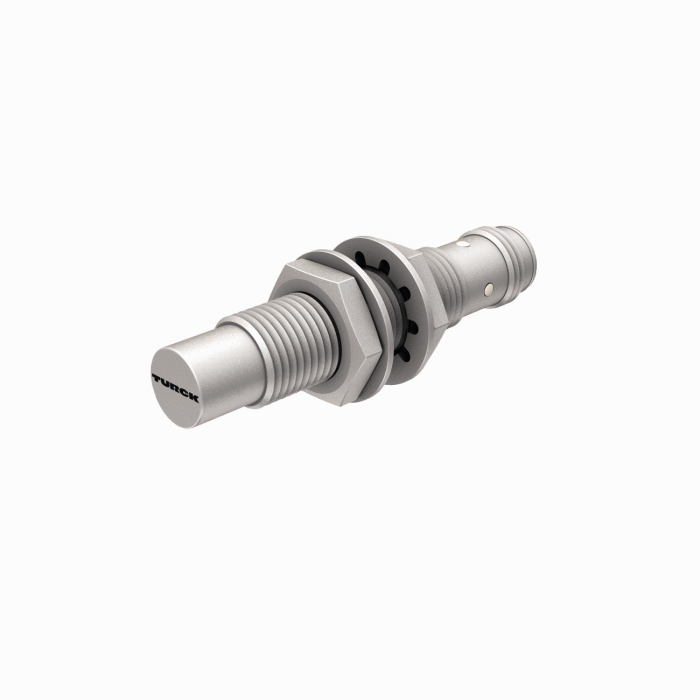

Product  NI10U-MT12-AP6X-H1141/S1589

Inductive Sensor

With WeldGuard™ coating

Ident. no.: 16348101
    • Threaded barrel, M12 x 1
    • Brass, PTFE-coated
    • Factor 1 for all metals
    • Protection class IP68
    • Resistant to magnetic fields
    • Large switching distance
    • Integrated protection against predamping
    • Little metal-free spaces
    • DC 3-wire, 10…30 VDC
    • NO contact, PNP output
    • M12 x 1 male connector

General data

eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch

Technical Data

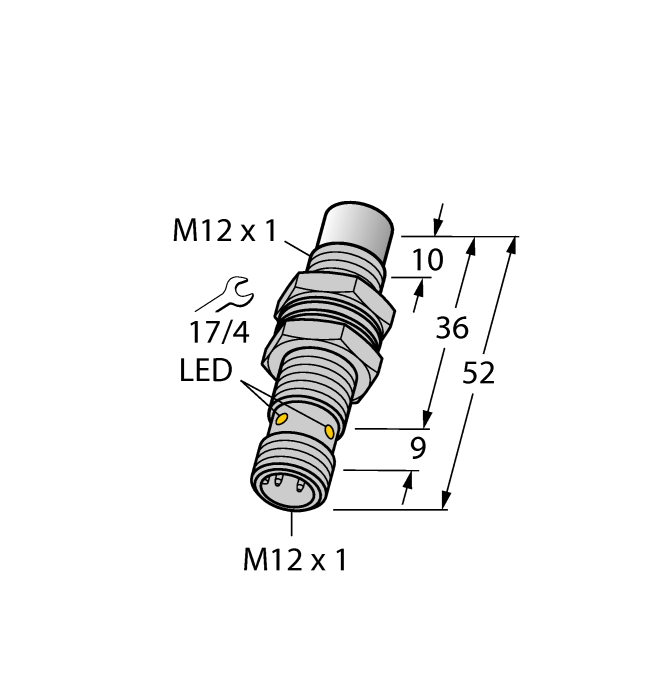

Design Threaded barrel
Construction size M12 x 1
Rated switching distance 10 mm
Mounting Non-flush
Operating voltage 10…30 VDC
Output function NO contact, PNP
Switching frequency 1.0 kHz
Electrical connection Connector, M12 × 1
Housing material Metal, CuZn, PTFE-coated
Ambient temperature -30…+85 °C
Protection class IP68
Special features uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated, weldguard®
