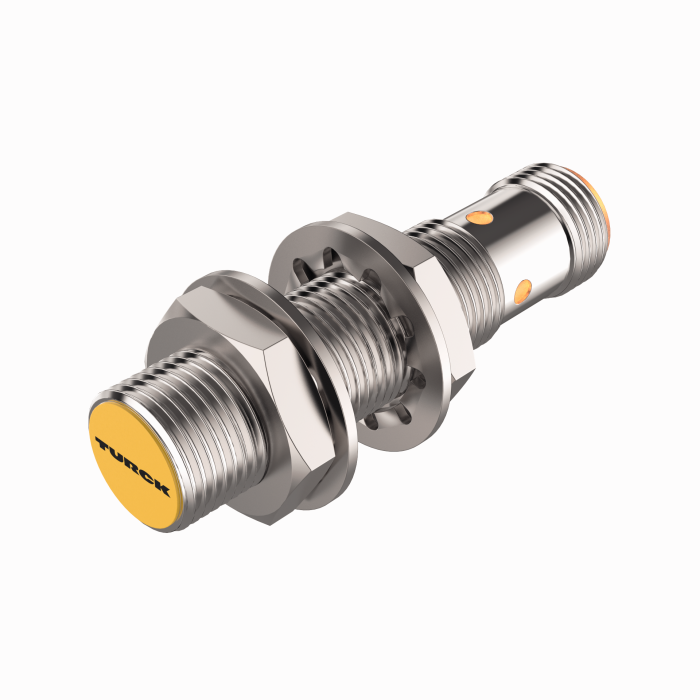

Product  BI6U-M12-AP6X-H1141

Inductive Sensor

Ident. no.: 1644810
    • M12 × 1 threaded barrel
    • Chrome-plated brass
    • Factor 1 for all metals
    • Protection class IP68
    • Resistant to magnetic fields
    • Large switching distance
    • DC 3-wire, 10…30 VDC
    • NO contact, PNP output
    • M12 x 1 male connector
#

General data

EAN 4047101318999
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 8536507000
Country of origin DE
Weight 33 g

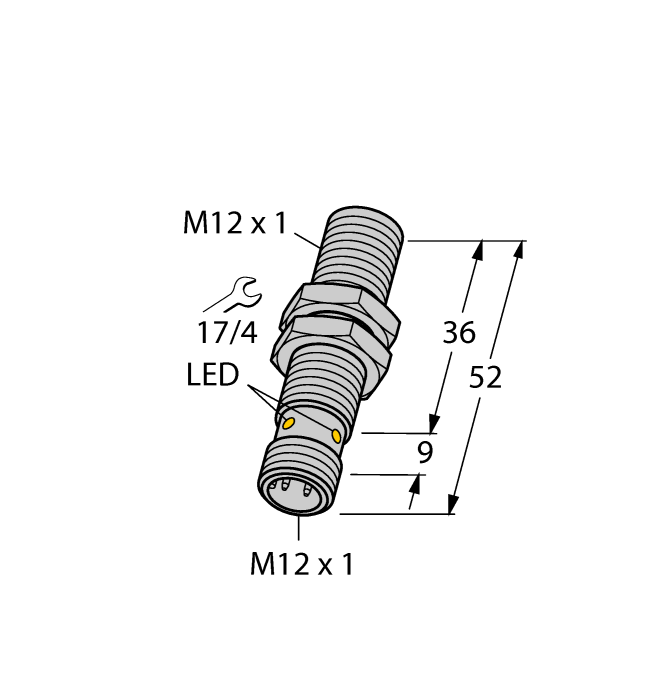

Technical Data

Design Threaded barrel
Construction size M12 x 1
Rated switching distance 6 mm
Mounting Flush
Operating voltage 10…30 VDC
Output function NO contact, PNP
Switching frequency 2.0 kHz
Electrical connection Connector, M12 × 1
Housing material Metal, CuZn, Chrome-plated
Ambient temperature -25…+70 °C
Protection class IP68
Special features uprox3, Resistant to magnetic fields, Factor 1

Data Sheets

Catalog (CAT)

EPLAN Electric P8

Product Catalog Pages

Product Flyer

Mounting accessories

6947212
