Product BID2-G180-RP6/S212
Inductive Sensor
For High Pressures
Ident. no.: 1688010- Threaded barrel, M18 x 1
- Stainless steel, 1.4305
- Admissible pressure static/dynamic 500/350 bar
- DC 3-wire, 10…30 VDC
- NC contact, PNP output
- Cable connection
General data
| EAN | 4047101084634 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 162 g |
Technical Data

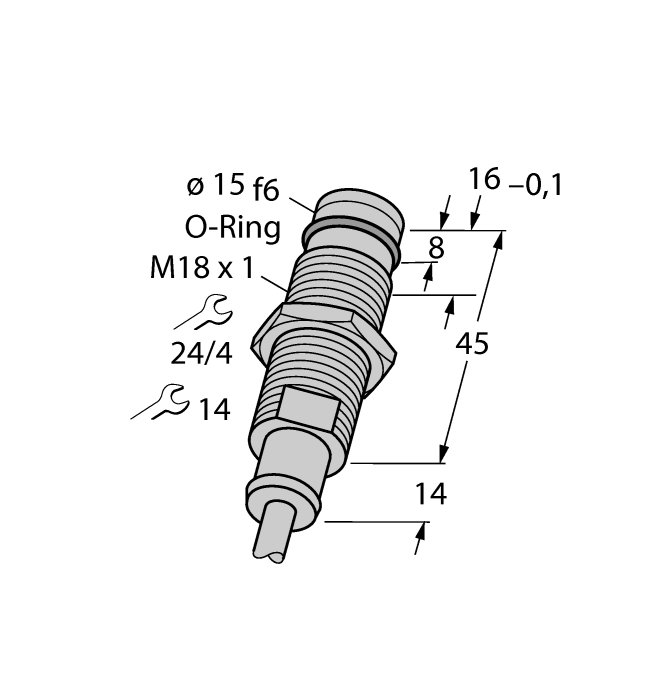

| Design | Threaded barrel |
| Construction size | M18 x 1 |
| Rated switching distance | 2 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NC contact, PNP |
| Switching frequency | 2.0 kHz |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Metal, 1.4305 (AISI 303) |
| Ambient temperature | -25…+85 °C |
| Protection class | IP67 |
| Special features | Pressure resistant |
