Product  NC50-CP80-VP4X2/S10

Capacitive Sensor

Ident. no.: 2580212
    • Rectangular, height 40.5 mm
    • Active face on top
    • Plastic, PBT-GF30-VO
    • Fine adjustment via potentiometer
    • DC 4-wire, 10…65 VDC
    • Complementary contact, PNP output
    • Terminal chamber
#

General data

EAN 4047101090284
eCl@ss-Code (V5.1.4): 27270102 -/- Capacitive proximity switch
Customs tariff number 85365080000
Country of origin DE
Weight 230 g

Technical Data

Design Rectangular

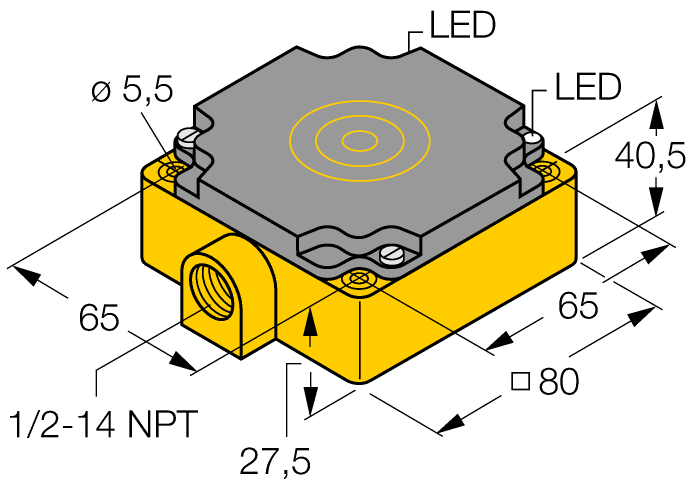

Construction size 80 x 80 x 40.5 mm, CP80
Rated switching distance 50 mm
Output function Complementary contact, PNP
Electrical connection Terminal chamber
Housing material Plastic, PBT-GF30-V0
Ambient temperature -25…+70 °C
Protection class IP67
Approvals UL
