Product BC8-Q10-AP6X2-V1131/S250

Zoom

Capacitive Sensor

Ident. no.: 2621201

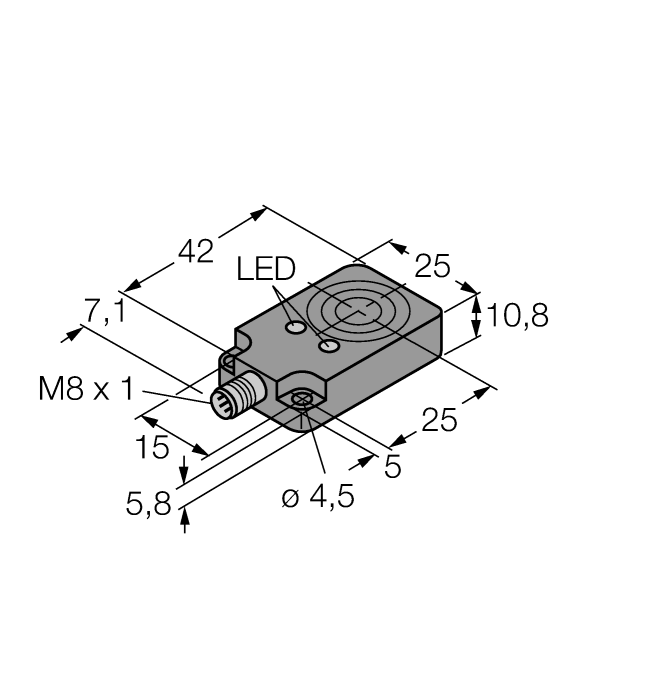

Rectangular, height 10.8mm
Active face on top
Plastic, PBT‐GF30‐V0

Fixed settings

DC 3-wire, 10…30 VDC
NO contact, PNP output
M8 × 1 connector

Hide All Open All

Specifications
Download
CAD

Data Sheets

English	141 KB

Approval/Declaration

UL — E210608	155 KB
EU — DoC	117 KB
UKCA	115 KB
EAC	286 KB

CAD File

2D (DWG)	248 KB
3D-1 (STP)	15 KB

Catalog

Sensor Catalog	80772 KB

Product Catalog Pages

Capacitive	3621 KB

Product Overview

Overview of Capacitive Sensors	1259 KB
