Product NI20-Q14-AD4X
Inductive Sensor
Ident. no.: 4414557- Rectangular, height 14 mm
- Active face on top
- Plastic, PBT‐GF30‐V0
- DC 2-wire, 10…65 VDC
- NO contact
- Cable connection
General data
| EAN | 4047101096408 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365080000 |
| Country of origin | DE |
| Weight | 119 g |
Technical Data
| Design | Rectangular |

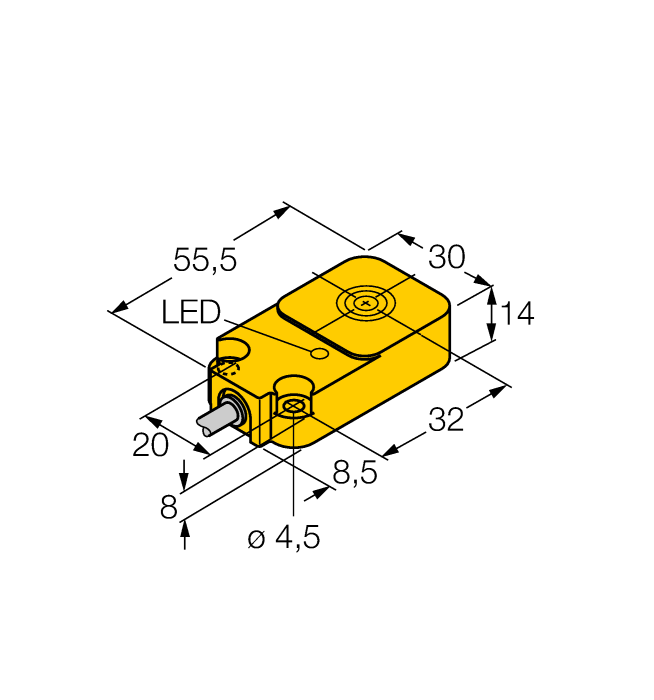

| Construction size | 52 x 30 x 14 mm, Q14 |
| Rated switching distance | 20 mm |
| Mounting | Non-flush |
| Operating voltage | 10…65 VDC |
| Output function | NO contact, 2-wire |
| Switching frequency | 0.150 kHz |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Plastic, PBT-GF30-V0 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
