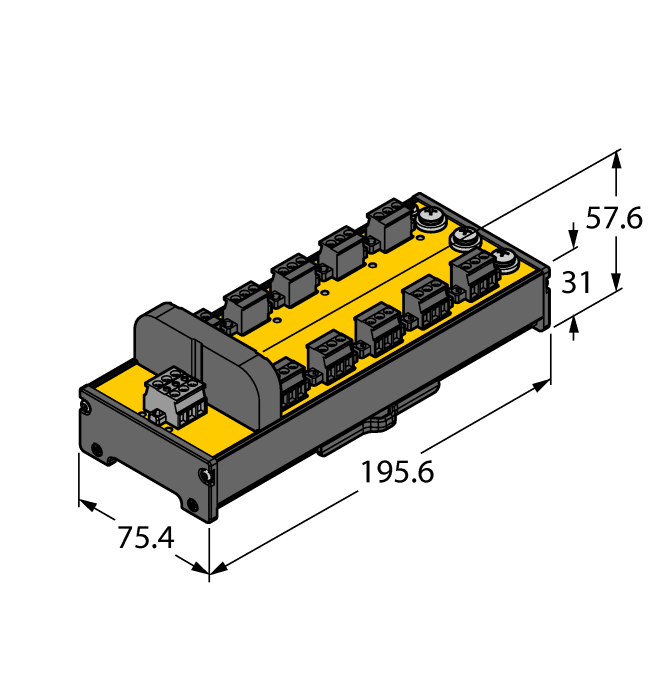

Product JRBS-40DC-10RV
IP20 Junction Box with Short-Circuit Protection, 10-Channel
FOUNDATION Fieldbus and PROFIBUS-PA
Ident. no.: 6611835- Junction box for DIN rail mounting
- Short-circuit protection per drop line/spur
- Pre-assembled terminating resistor: JRBS-40TR (included in delivery)
- Cable shielding: Capacitive or direct connection established via two M5 threaded bolts
- Aluminium housing
- Entity and FISCO compliant according to IEC 60079-11
General data
| EAN | 4047101284164 |
| eCl@ss-Code (V5.1.4): | 27250201 -/- Network components (fieldbus) |
| Customs tariff number | 8536504000 |
| Country of origin | CN |
| Weight | 673 g |
Technical Data
| Fieldbus Protocol | FOUNDATION fieldbus, PROFIBUS-PA |
| Device type | Active fieldbus junction box |
| Ambient temperature | -50…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, Ex-Approval, IECEx, FM |
