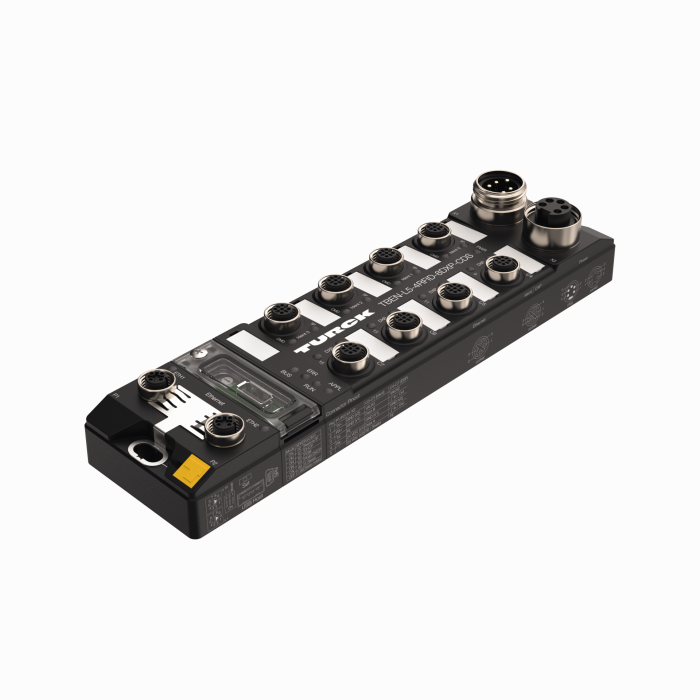

Product TBEN-L5-4RFID-8DXP-CDS
Compact Multiprotocol RFID Module for Ethernet
interface for 4 BL ident read-write heads (HF/UHF)
Ident. no.: 6814120- CODESYS V3 PLC runtime
- CODESYS OPC UA server/client
- PROFINET device, EtherNet/IP device or Modbus TCP client/server
- 4 channels with M12 connection for RFID
- 8 universal digital channels, configurable as PNP inputs or outputs, 2 A
- Switched or dual MAC mode
- Integrated Ethernet switch
- Supports 10 Mbps/100 Mbps
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- ATEX zone 2/22
- CCC-Ex
- Integration in PLC systems without the use of a special function module
- Up to 128 bytes of user data per read/write cycle per channel as well as the use of fragments with 16 kilobytes of FIFO memory each
- Data interface for convenient use of the RFID functions
- Continuous HF bus mode with up to 32 HF read/write heads per channel
- 4 channels with M12 connection for RFID
- 8 universal digital channels, configurable as PNP inputs or outputs, 2 A
General data
| EAN | 4047101376753 |
| eCl@ss-Code (V5.1.4): | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 85371091990 |
| Country of origin | DE |
| Weight | 643 g |
Technical Data
| Operating system | Linux |
| Fieldbus Protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Number of channels | 12 |
| Ambient temperature | -40…+70 °C |
| Protection class | IP65/IP67/IP69K |
Data Sheets
Approval
CAD File
Configuration File
Configuration Manual
Configuration Software
Firmware
Function Block/Library
| CODESYS package TBEN-Lx-4RFID-8DXP-CDS | 56129 KB |
| RFID function block, universal data interface for CODESYS V3 | 1145 KB |
Manual
| TBEN-L5-4RFID-8DXP-CDS manual | 15669 KB |
| Bus mode description | 741 KB |
| Calculation tool for HF bus mode | 100 KB |
Manufacturer's Declaration
| EU and UK Declaration of Conformity | 242 KB |
| EU and UK Declaration of Conformity According to ATEX | 120 KB |
Product Flyer
Quick Start Guide
