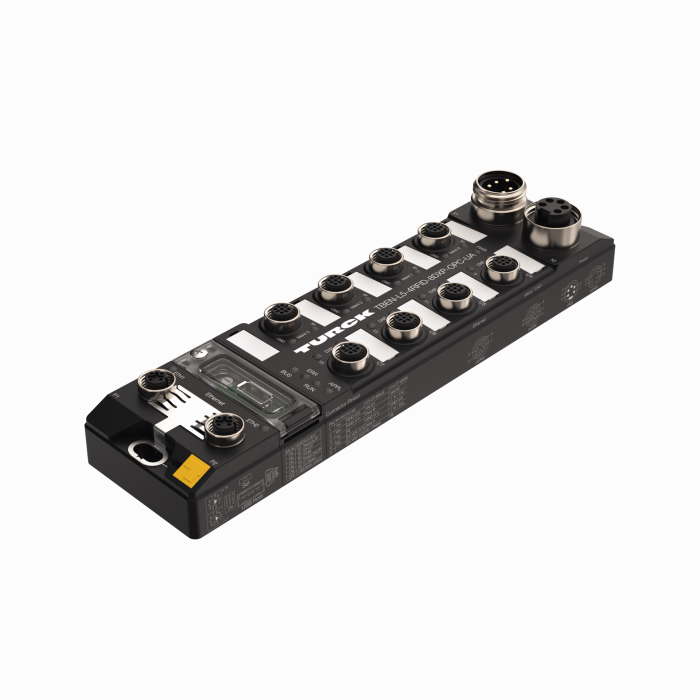

Product  TBEN-L5-4RFID-8DXP-OPC-UA

Compact RFID Module for OPC-UA

4 RFID Channels in Accordance with AutoID Companion Specification and 8 Universal Digital Channels, Configurable as PNP Inputs or 2-A Outputs

Ident. no.: 6814126
    • Integrated OPC UA server standardized in accordance with AutoID Companion Specification V. 1.01
    • Calling of data via OPC UA clients
    • Glass fiber reinforced housing
    • Shock and vibration tested
    • Fully potted module electronics
    • Protection classes IP65, IP67, IP69K
    • ATEX zone 2/22
    • CCC-Ex
    • Universal interface offers interoperability
    • Supports security mechanisms and authentication
    • Continuous reading of EPC, UID or USER data
    • Continuous HF bus mode with up to 32 HF read/write heads per channel
    • 4 channels with M12 connection for RFID
    • 8 universal digital channels, configurable as PNP inputs or outputs, 2 A
#
Hide All Open All

General data

EAN 4047101376999
eCl@ss-Code (V5.1.4): 27250302 -/- Digital I/O module (periphery)
Customs tariff number 85176200000
Country of origin DE
Weight 645 g

Technical Data

Fieldbus Protocol OPC UA
Number of channels 12
Ambient temperature -40…+70 °C
Protection class IP65/IP67/IP69K

Connectivity accessories — Power supply

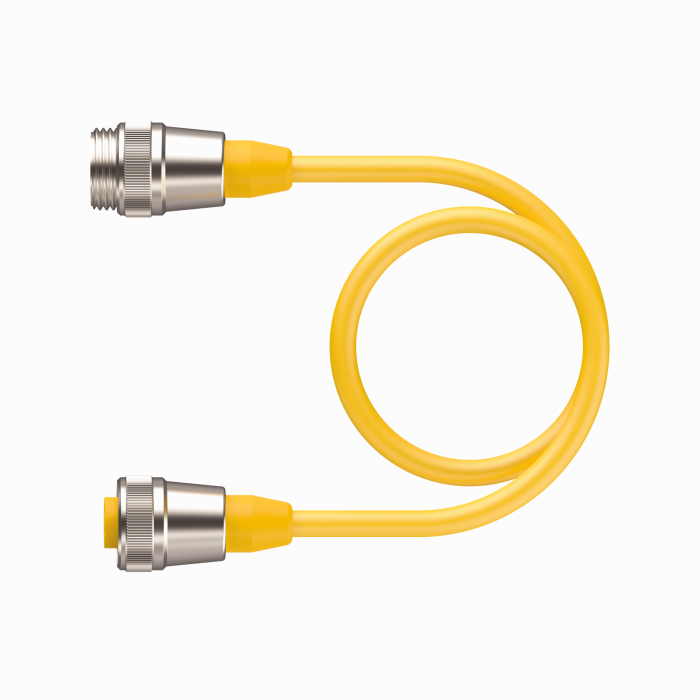

RSM RKM 50-2M

Actuator and Sensor Cordset, Extension Cable, 7/8” Male, Straight, 5-pin, 7/8″, Male, Straight, 4-pin, Cable length: 2 m, Cable jacket: PVC, Yellow, other cable lengths and qualities available, see www.turck.com

U2282-0

Connectivity accessories — Technology

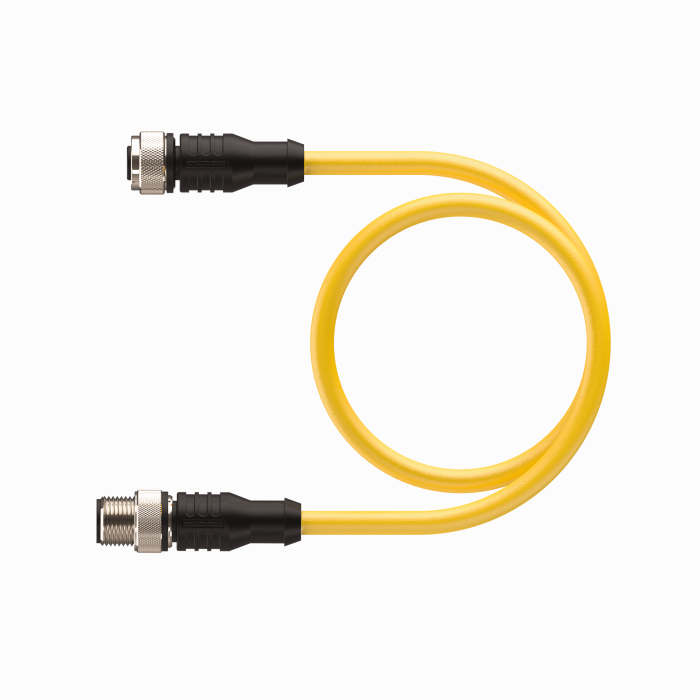

RK 4.5T-2-RS 4.5T/S2501

Actuator and Sensor Cordset, Extension Cable, M12, Female, Straight, 5-pin, M12, Male, Straight, 5-pin, IP68, IP69K, Cable length: 2 m, Cable jacket: PVC, Yellow, other cable lengths and qualities available, see www.turck.com

U3-01243
