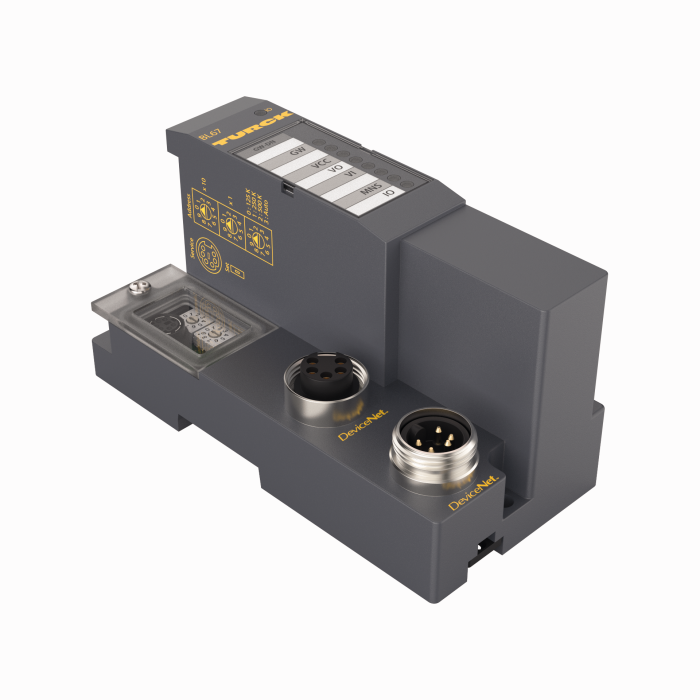

Product  BL67-GW-DN

Gateway for BL67 I/O system

Interface for DeviceNet™

Ident. no.: 6827183
    • 3 decimal rotary coding switches
    • Protection class IP67
    • LEDs for display of supply voltage, group and bus errors
    • Interface between the BL67 system and DeviceNet
    • 120/250/500 kbps
    • Two males 7/8", 5-pin, fieldbus connection
#

General data

EAN 4047101109108
eCl@ss-Code (V5.1.4): 27250313 -/- Communication interface, passive
Customs tariff number 85176200000
Country of origin DE
Weight 359 g

Technical Data

Fieldbus Protocol DeviceNet
Device type Gateway
Fieldbus transmission rate 125/250/500 kbps
Fieldbus connection technology 2 × 7/8″, 5-pin
Ambient temperature -40…+70 °C
Protection class IP67
Approvals cULus
