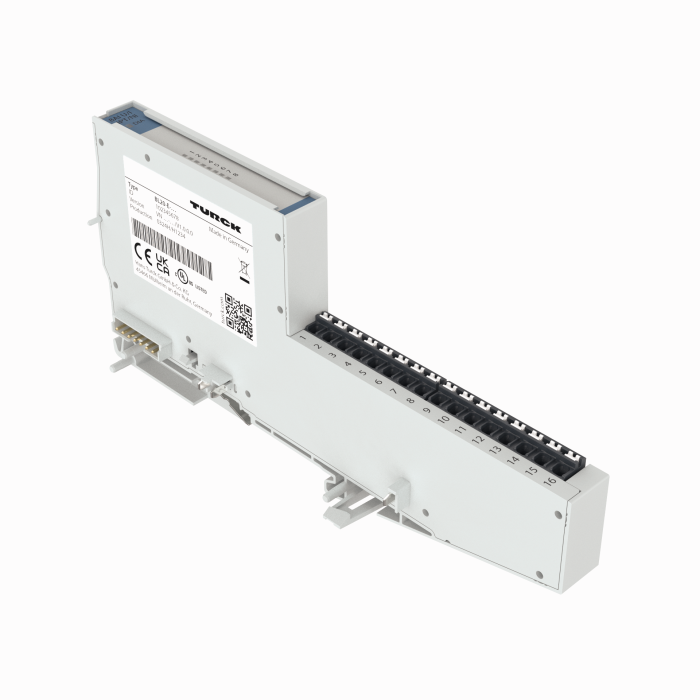

Product BL20-E-8AI-U/I-4PT/NI
BL20 Economy Module
8 2-wire Analog Inputs U/I resp. 4 2/3-wire PT/NI Inputs
Ident. no.: 6827325- Fieldbus-independent
- Electronics and connection technology in one housing
- Connectivity: Push-in terminals
- Protection class IP20
- LEDs indicate status and diagnostic
- Electronics galvanically separated from the field level via optocouplers
- 8 analog 2-wire inputs U/I
- Passive input - External supply
- 0 … 20 mA, 4 … 20 mA, -10 … +10 VDC or 0 … +10 VDC, selectable per channel
- Alternatively: 4PT/NI inputs (always 2 analog inputs are combined to a PT/Ni 2/3-wire input)
General data
| EAN | 4047101210644 |
| eCl@ss-Code (V5.1.4): | 27250303 -/- Analog I/O module |
| Customs tariff number | 85389091890 |
| Country of origin | DE |
| Weight | 86 g |
Technical Data
| Signal type | Analog input, Temperature |
| Connection technology signal | Cage clamp terminal |
| Device type | I/O Module |
| Ambient temperature | 0…+55 °C |
| Protection class | IP20 |
| Approvals | cULus |
Data Sheets
Approval
| FM07 ATEX 0040X | 739 KB |
| IECEx FME 07.0004X | 251 KB |
| FM Class 1 Div. 2 US | 178 KB |
| FM Class 1 Div. 2 Canada | 179 KB |
