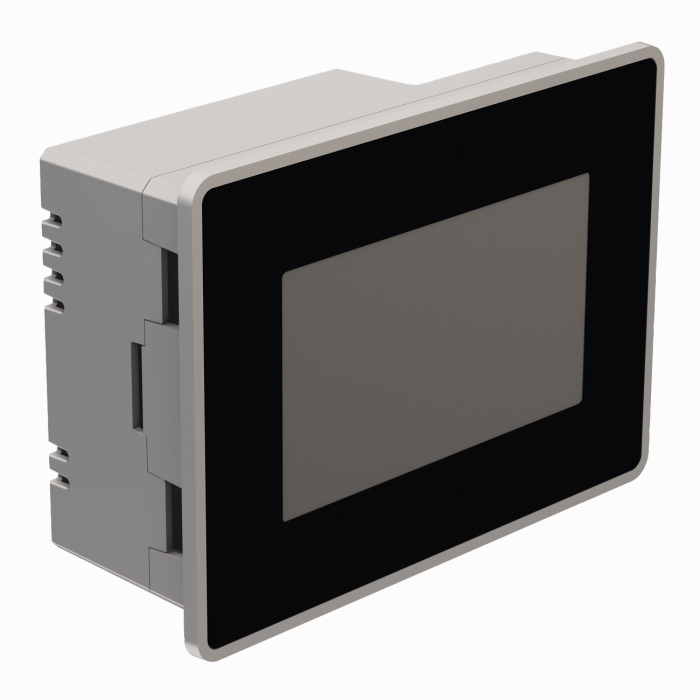

Product TX504E-P3CV01

Zoom

TX500 HMI / PLC Series

4.3” Display - CODESYS V3 PLC with TARGET and WEB VISU

High-Quality Metal Housing with a Resistive Touch Screen

Ident. no.: 6828101

4.3" TFT wide screen color display
LED backlight
480 x 272 pixel resolution
64 K colors
Resistive touch screen

2 RJ45 Ethernet ports with integrated switch
1 serial interface (RS232, RS485, RS422)
1 USB host port
1 SD card slot

Hide All Open All

Specifications
Download
Accessories
CAD

Data Sheets

English	668 KB

Configuration File

CODESYS Package TX HMI/PLCs (for CODESYS v3.5.19.20 or Higher)	7395 KB
CODESYS Package TX HMI/PLCs (for CODESYS v3.5.18.30 or Higher)	8197 KB
CODESYS Package TX HMI/PLCs (for CODESYS v3.5.16.30 or Higher)	6826 KB
GSDML Files	11 KB
EDS Files	6 KB

Configuration Software

CODESYS Software 3.5.18.3	1465476 KB
CODESYS Software 3.5.16.3	1344878 KB
Turck Automation Suite TAS

Manual

TX500 operating instructions	2723 KB
PROFINET Controller/Device in CODESYS v3	2106 KB

Manufacturer's Declaration

EU conformity declaration	703 KB

Product Overview

TX HMI Operator Panels, PLC and IIoT Edge Controller	17711 KB

Quick Start Guide

Quick Start Guide TX500	805 KB

Mounting accessories

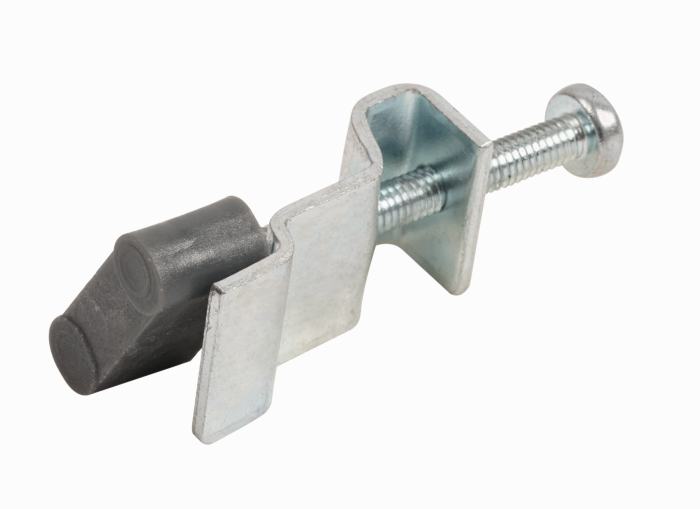

	TX500-MOUNT-07 TX500 mounting bracket and power connectors for 4–7” devices	6828220

Functional accessories

	TX-PSC Power Supply Male Connector for TX HMI Devices	100002938

Functional accessories

	RJ45S RJ45S 441-2M Ethernet cable, RJ45 male straight to RJ45 male straight, 2 m	U-06842
