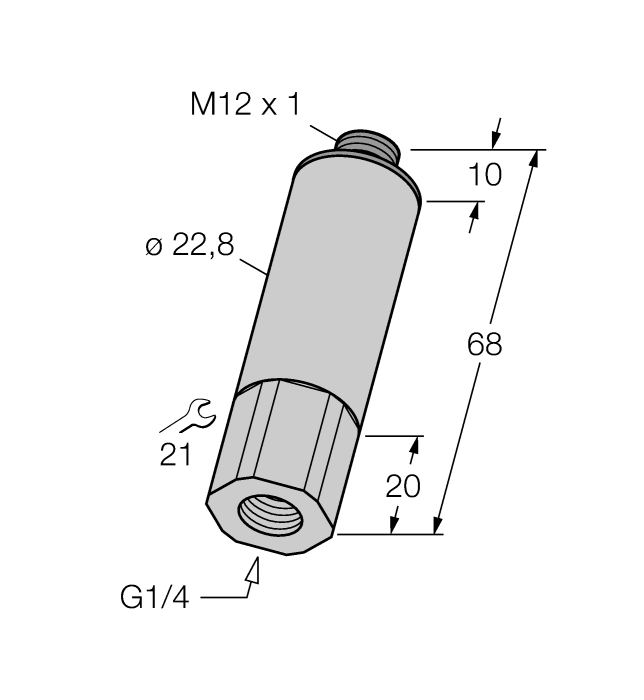

Product PT002A-11-LI3-H1131
Pressure Transmitter
With Current Output (2-Wire)
Ident. no.: 6831450- Compact and robust design
- Pressure connection with integrated peak pressure aperture
- Accuracy hardly affected by temperature within entire range ‐40…+125°C
- Excellent EMC properties
- Pressure range 0…1.6 bar abs.
General data
| EAN | 4047101165821 |
| eCl@ss-Code (V5.1.4): | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 90262020000 |
| Country of origin | CH |
| Weight | 124 g |
Technical Data
| Design | Without display |
| Process connection | G 1/4'' female thread |
| Pressure type | Absolute pressure |
| Pressure range bar | 0…1.6 bar |
| Pressure range psi | 0…23.21 psi |
| Operating voltage | 8…33 VDC |
| Electrical output | Current output (2-wire) |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless-steel/Plastic, 1.4305 (AISI 303) |
| Material pressure transducer | Ceramic Al₂O₃ |
| Medium temperature | -40…+125 °C |
| Ambient temperature | -40…+85 °C |
| Protection class | IP67 |
