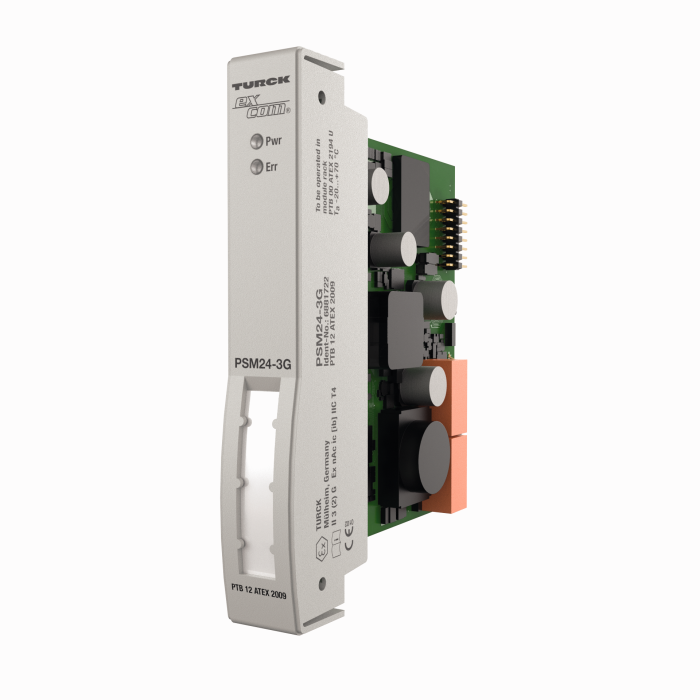

Product PSM24-3G
excom I/O System
Power Supply Module, 24 VDC, Zone 2
Ident. no.: 6881722- DC power supply module, supplies a module rack in zone 2
General data
| EAN | 4047101266245 |
| eCl@ss-Code (V5.1.4): | 27250311 -/- Power supply (decentralized periphery) |
| Customs tariff number | 85044083900 |
| Country of origin | DE |
| Weight | 160 g |
Technical Data
| Fieldbus Protocol | PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET |
| Signal type | Power supply |
| Connection technology signal | Screw terminal, Cage clamp terminal |
| Device type | Power Supplies |
| Ambient temperature | -20…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, IECEx, CCC, INMETRO, KOSHA, EAC Ex, CE |
Data Sheets
Approval
| PTB 12 ATEX 2009 | 2045 KB |
| IECEx PTB 18.0044X | 1857 KB |
| EC declaration of conformity | 219 KB |
| KOSHA 21-AV4BO-0086X | 179 KB |
| CCC-2020322303001956 | 856 KB |
