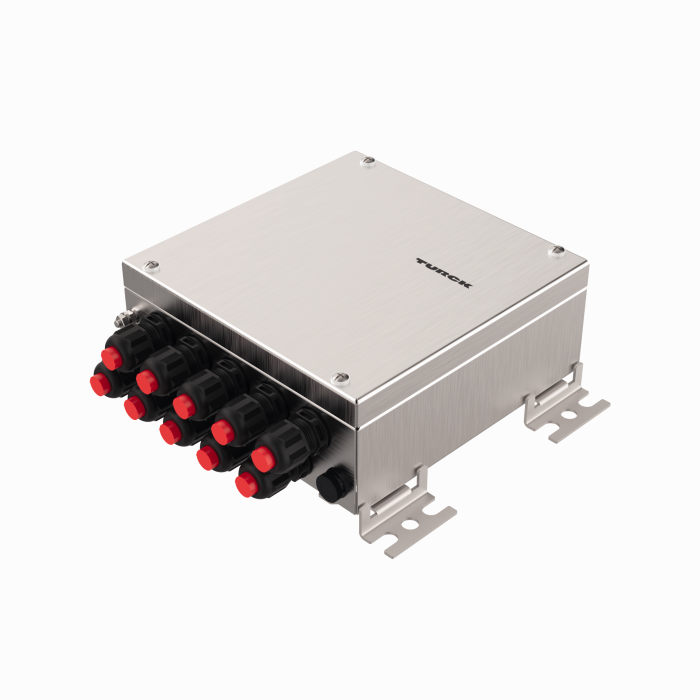

Product EG-VA2020/BV68-T085/JRBS-40SC-8C/EX
IP66 Junction Box, 8-Channel
FOUNDATION Fieldbus and PROFIBUS-PA
Ident. no.: 6884281- Junction box for wall mounting with PVC cable glands M20 x 1.5
- Short-circuit protection per drop line/spur
- Connectible terminating resistor
- Cable shielding: Capacitive or direct connection to housing potential selectable via switch
- Stainless steel housing
- Pressure compensation element protects against condensation
- Connection of the housing potential via M5 x 1 bolt
General data
| EAN | 4047101408355 |
| eCl@ss-Code (V5.1.4): | 27250391 -/- Decentralized periphery (parts) [AKP191002] |
| Customs tariff number | 85371098990 |
| Country of origin | DE |
| Weight | 2917 g |
Technical Data
| Fieldbus Protocol | FOUNDATION fieldbus, PROFIBUS-PA |
| Connection technology signal | Cable gland |
| Device type | Active fieldbus junction box |
| Ambient temperature | -25…+60 °C |
| Protection class | IP66 |
