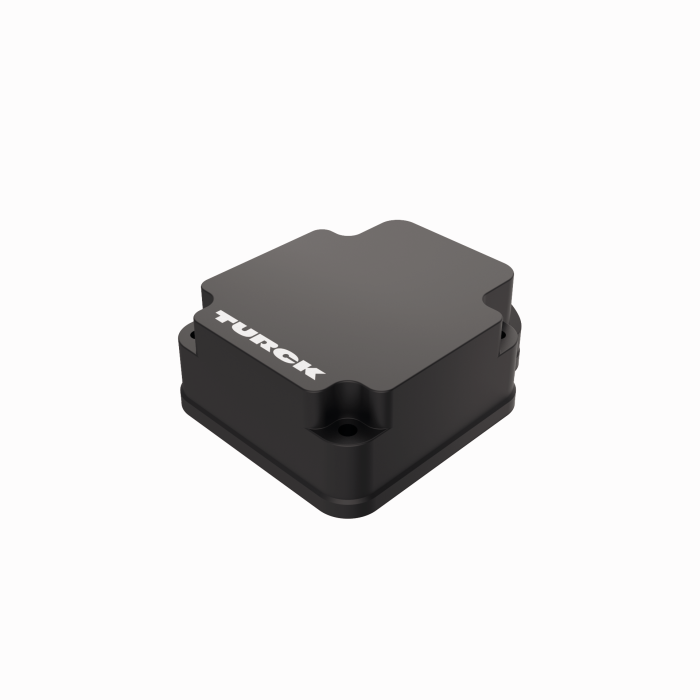

Product TNSLR-Q80WD-H1147
HF Read/Write Head
Ident. no.: 7030418- Rectangular, height 40 mm
- Active face on top
- Plastic, PPS‐GF30
- Powered and operated only via connection to BL ident interface module
- M12 × 1 connector, connection only via BL ident extension cable
General data
| EAN | 4047101259858 |
| eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
| Customs tariff number | 84719000000 |
| Country of origin | DE |
| Weight | 309 g |
Technical Data
| Technology | HF RFID |
| Radio communication and protocol standards | ISO 15693, NFC Typ 5 |
| Design | Rectangular |

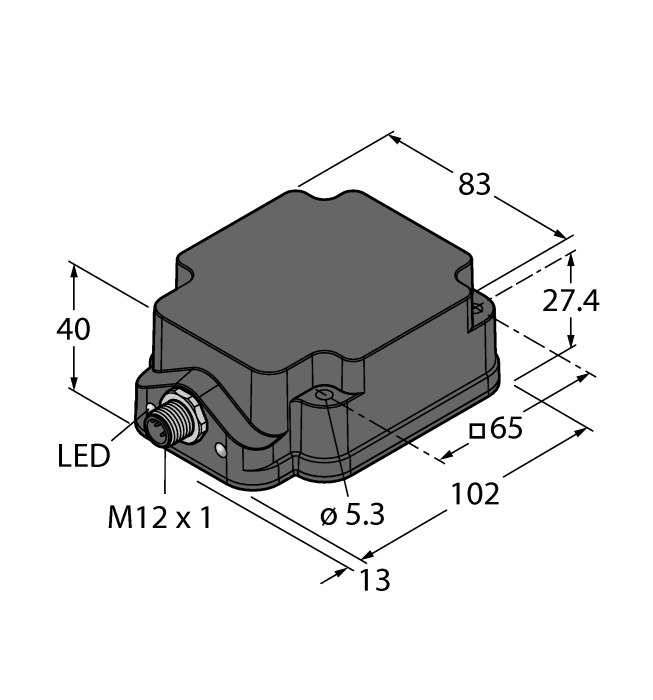

| Construction size | 102 x 83 x 40 mm, Q80WD |
| Read/Write distance max. | 280 mm |
| Mounting | Non-flush |
| Fieldbus Protocol | Connection to RFID interface |
| Housing material | Plastic, Black |
| Ambient temperature | -25…+70 °C |
| Protection class | IP68/IP69K |
