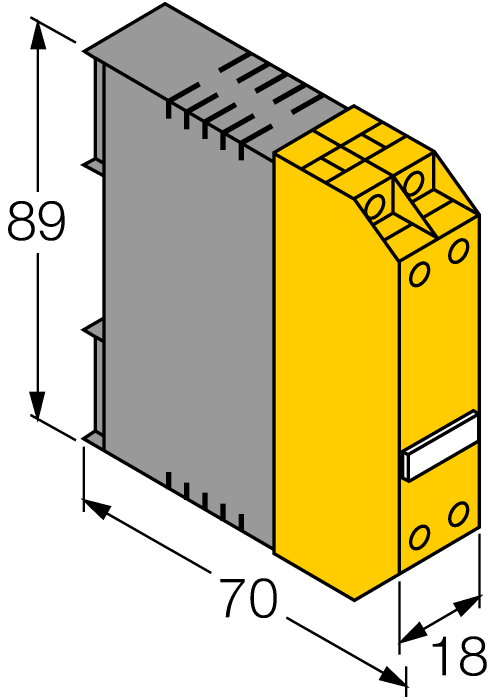

Product MK33-11EX0-PLI/24VDC
Isolating transducer
1-channel
Ident. no.: 7506436- Power supply of 2-wire measuring transducers
- Input circuit: 0/4…20 mA
- Passive output circuit: 0/4…20 mA
- Galvanic separation of input circuits, output circuits and power supply
- Complete galvanic isolation
- Input reverse-polarity protected
- Intrinsically safe input circuits EEx ia
- Application area acc. to ATEX: II (1) GD
General data
| EAN | 4047101117110 |
| eCl@ss-Code (V5.1.4): | 27210119 -/- Isolating transducer |
| Customs tariff number | 85437090990 |
| Country of origin | DE |
| Weight | 92 g |
Technical Data
| Number of channels | 1 |
| Electrical connection | 4 × 2-pin flat terminals with self-lifting pressure plates |
| Protection class | IP20 |
