Product IM34-11EX-I
Temperature measuring amplifier
1-channel
Ident. no.: 7506630- Input for Pt100/ Ni100 resistors, thermocouples and millivolt signals in 2, 3 or 4-wire technology
- Output circuit: 0/4…20 mA
- Upper and lower limit adjustable via rotary coding switch
- Complete galvanic isolation
- Input reverse-polarity protected
- ATEX, IECEx, CFMUS, UL, TR CU, INMETRO, CCOE, NEPSI, KOSHA
- Installation in zone 2
General data
| EAN | 4047101117387 |
| eCl@ss-Code (V5.1.4): | 27200206 -/- Transducer (temperature) |
| Customs tariff number | 8536698000 |
| Country of origin | CN |
| Weight | 150 g |
Technical Data
| Signal type | Temperature input |
| Device type | Temperature measuring amplifier |
| Ex version | yes |
| Approvals | ATEX, IECEx, UL, cFMus, TR CU, INMETRO, CCOE |
| Nominal voltage | Wide voltage range |
| Number of channels | 1 |
| Electrical connection | 4 × 3-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
Data Sheets
Approval
| TÜV 02 ATEX 1898 | 2192 KB |
| TÜV 06 ATEX 552978 X | 2151 KB |
| FM/CSA - IS-1.106 | 192 KB |
| IECEx - TUN 06.0010X | 4678 KB |
| KOSHA 14-AV4BO-0478X | 363 KB |
| UL 61010 | 373 KB |
Brochure/Folder/Flyer (BRO)
CAD File
EU Declaration of Conformity
Product Flyer
Quick Start Guide
Mounting accessories
|

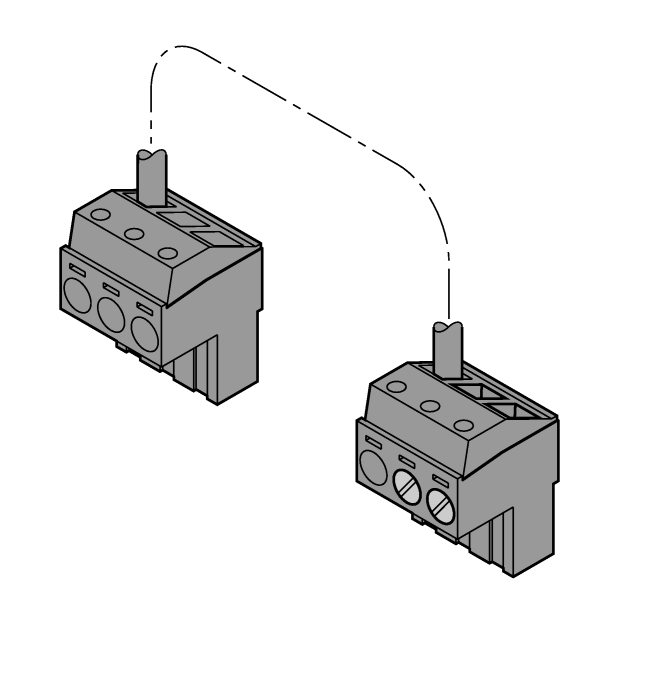

IM-3-CJT
Cold junction compensation module for IM 34 temperature measuring amplifiers, width 18 mm |
6900524 |
|
IM-CC-3X2BU/2BK
Cage clamp terminals for IM modules (Ex-devices with 18 mm overall width); includes: 2 pcs. 3-pin blue terminals and 2 pcs. 3-pin black terminals. |
6900475 |
