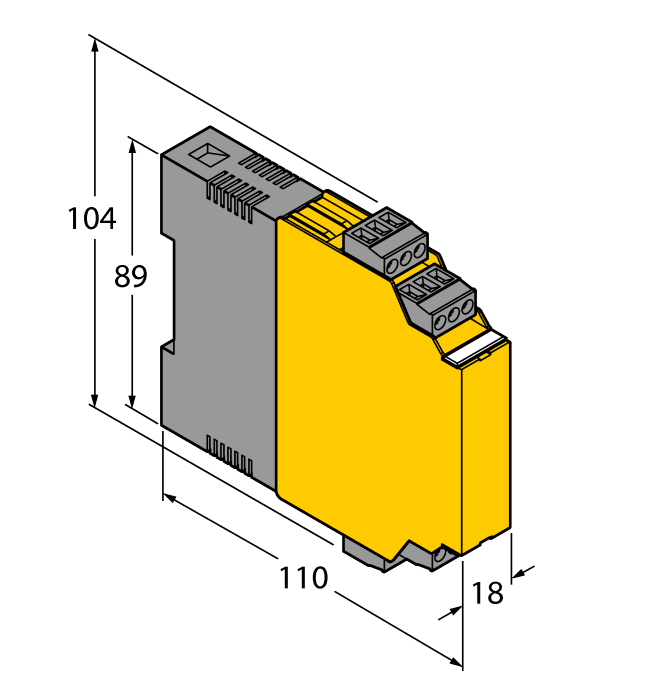

Product IM72-22EX/L
Solenoid Driver
2-channel
Ident. no.: 7520702- Voltage input max. 30 VDC
- Voltage outuput 15 VDC resp. 24 VDC
- Output current ≤ 40 mA
- Switching frequency ≤ 500 Hz
- SIL3
- Removable terminal blocks
- Galvanic isolation between input and output circuits
- ATEX, IECEx, UL, CFMUS TR CU,NEPSI, INMETRO, Kosha
- Installation in zone 2
General data
| EAN | 4047101118230 |
| eCl@ss-Code (V5.1.4): | 27049002 -/- DC supply |
| Customs tariff number | 85437090990 |
| Country of origin | DE |
| Weight | 150 g |
Technical Data
| Signal type | Digital output |
| Device type | Solenoid driver |
| Ex version | yes |
| Approvals | ATEX, IECEx, UL, cFMus, TR CU, NEPSI, INMETRO |
| Functional safety (SIL/PL) | SIL3 |
| Nominal voltage | Loop-powered |
| Number of channels | 2 |
| Digital output | Current/voltage-limited signal |
| Electrical connection | 4 × 3-pin removable terminal blocks, reverse polarity protected, screw terminal |
| Protection class | IP20 |
| Product series | IM |
Data Sheets
Approval
| 1570 KB | |
| TÜV 05 ATEX 2846 X | 1755 KB |
| FM/CSA - IS-1.108 | 196 KB |
| IECEx - TUN 05.0011X | 264 KB |
| UL — IS-1.306 | 193 KB |
| 655 KB | |
| UL 61010 | 373 KB |
CAD File
EU Declaration of Conformity
Product Flyer
Quick Start Guide
SIL Declaration
Safety Manual
Mounting accessories
|
IM-CC-3X2BU/2BK

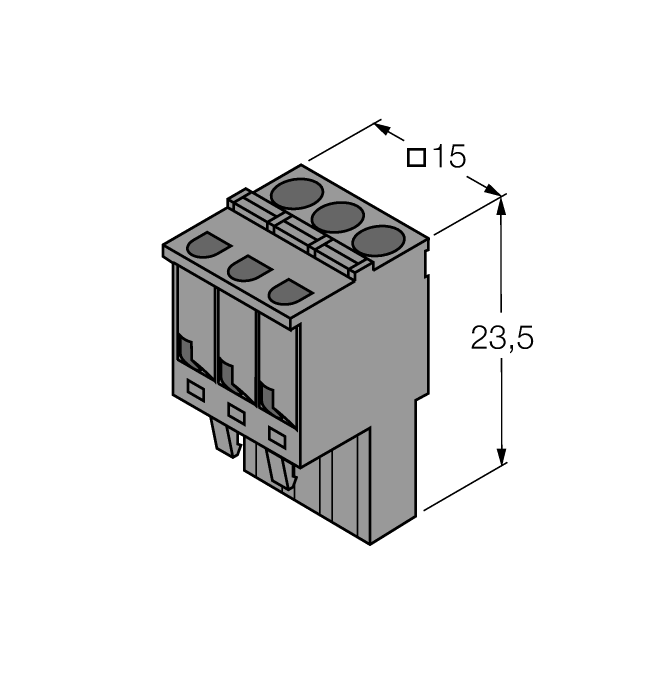

Cage clamp terminals for IM modules (Ex-devices with 18 mm overall width); includes: 2 pcs. 3-pin blue terminals and 2 pcs. 3-pin black terminals. |
