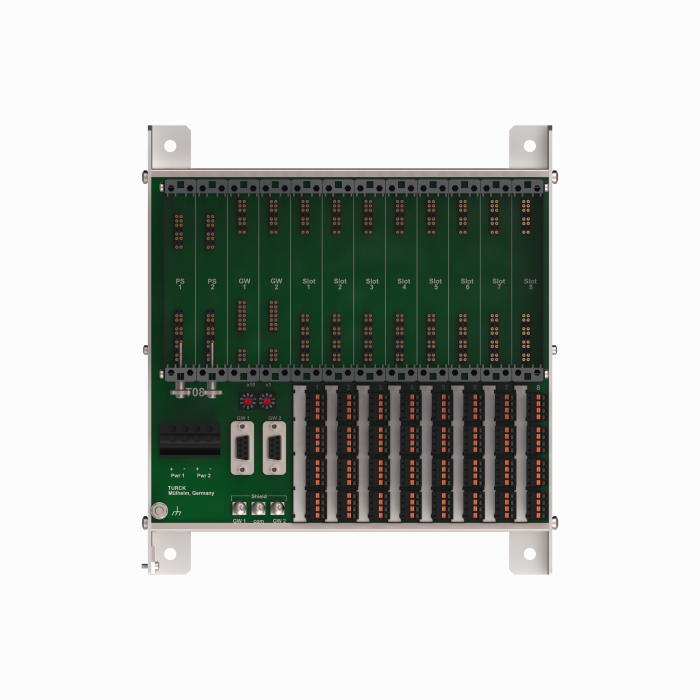

Product MT08-N
excom I/O System
Module rack, non-Ex, for 8 modules
Ident. no.: 9100689- Module rack for max. 8 I/O modules, 2 gateways and 2 power supply modules
- The terminals for the signal connection level are available as accessories
General data
| EAN | 4047101296815 |
| eCl@ss-Code (V5.1.4): | 27250301 -/- Module rack (periphery) |
| Customs tariff number | 8533210020 |
| Country of origin | CN |
| Weight | 1600 g |
Technical Data
| Fieldbus Protocol | PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET |
| Connection technology signal | Screw terminal, Cage clamp terminal |
| Device type | Module Racks |
| Fieldbus connection technology | 2 × D-SUB, 9-pin |
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, cFMus, cFM, IECEx, CE |
Data Sheets
Approval
| TÜV 21 ATEX 8643 X | 814 KB |
| IECEx TUR 21.0012X | 340 KB |
| EC declaration of conformity | 112 KB |
| FM23US0051X | 939 KB |
| FM23CA0037X | 974 KB |
| JPEX | 244 KB |
CAD File
Manual
Product Catalog
Product Overview
Programming Software
Quick Start Guide
Mounting accessories
|
BM-N
Dummy module for unused slots on the module rack, version N |
6884226 |
Connectivity accessories
|
STB16-4RS/1.5-BK
16-pcs. set: 4-pin terminal block, screw clamps black |
9909624 |
|

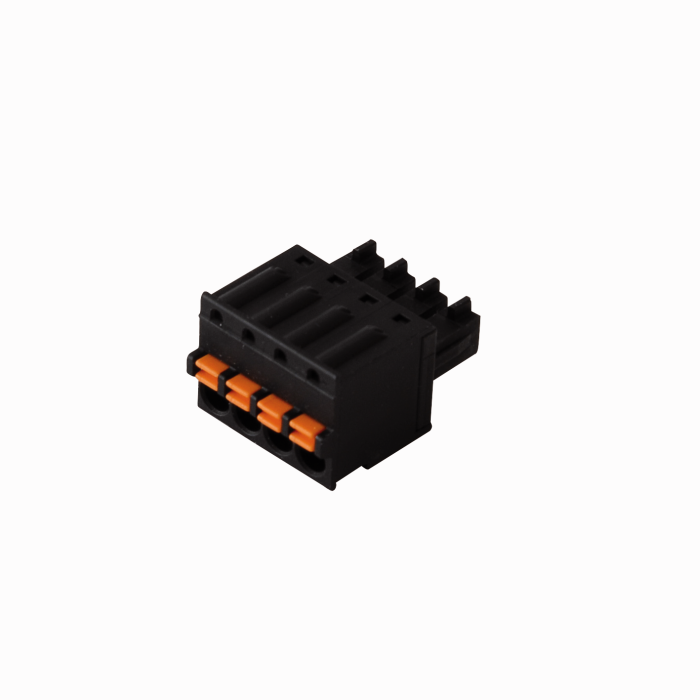

STB16-4RC/1.5-BK
16-pcs. set: 4-pin terminal block, cage clamps black |
9909625 |
