Product LT86E-Q21-LU0X3-H1141

Zoom

« Prev Next »

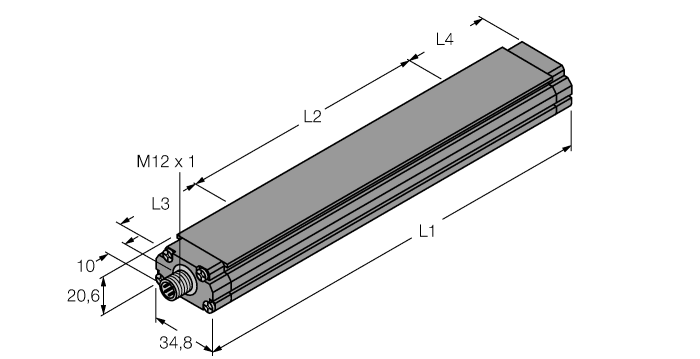

EZ-Track Linear Displacement Transducer

Ident. no.: LT1072

EZ-Track Linear Displacement Transducer

Hide All Open All

Specifications
Download

Technical Data

Design	Profile
Measuring principle	Magnetostrictive
Measuring range	2184.4 mm [86.00 in]
Output function	Analog output
Electrical connection	Connector, M12 × 1
Housing material	Metal, AL
Ambient temperature	-40…+70 °C
Protection class	IP67
Approvals	CE, FM C1D2
