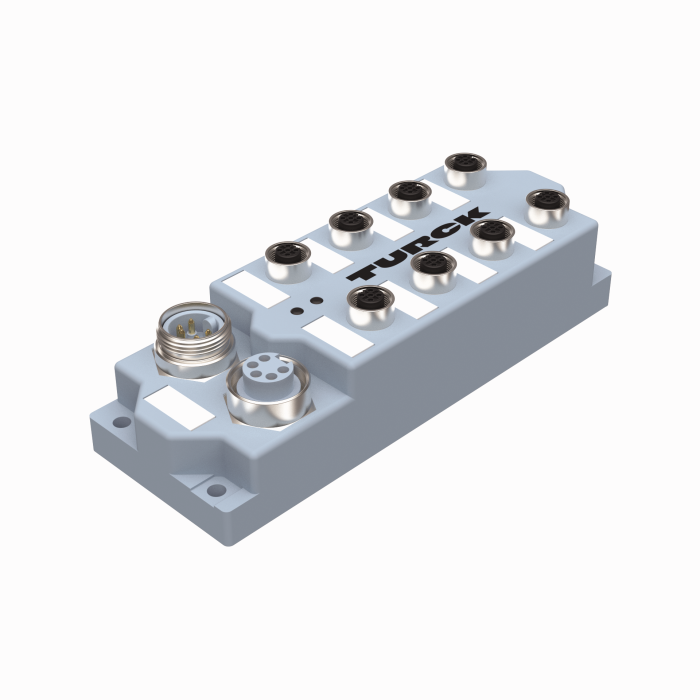

Product JBBS-57-E811
Passive Junction Box for DeviceNet
8-Port without Cable
Ident. no.: U0205- 8 × M12 female connector, 5-pin
- 1 × 7/8″ female connector, 5-pin
- 1 × 7/8″ male connector, 5-pin
- Protection class: IP67
- Integrated terminating resistor (switchable)
- Cable shielding: capacitive or direct connection to housing potential selectable via switch
- Isolated support terminal for optional protective conductor incorporated in cable
- Powder-coated die-cast aluminum housing
- Pressure compensation element protects against condensation
- Connection of the housing potential via M5 × 1 bolt
General data
| EAN | 4047101020342 |
| Customs tariff number | 85366990990 |
| Country of origin | MX |
| Weight | 696.264 g |
Technical Data
| Connection technology signal | M12 |
| Protection class | IP67 |
