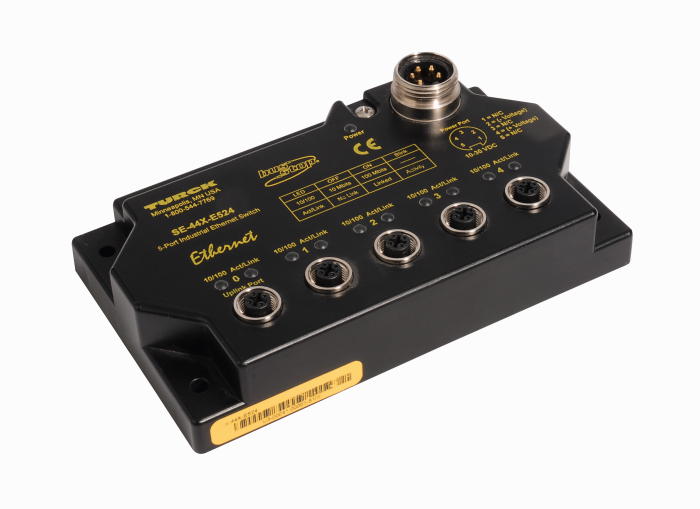

Product SE-44X4-E524
Industrial Ethernet
Unmanaged Switch
Ident. no.: U9450- 10/100 Mbps
- Auto-sensing, 10/100M, half/full duplex, auto-negotiating
- Auto cross-over, auto-polarity
- Automatic address learning, aging and migration
- Store and forward wire-speed switching
- IEEE 802.3, 802.3u, 802.3x
- 5 ports
- Ethernet connection: 4-pole, M12 D-code
- Power supply: 4-pole, 7/8”
- Protection class: IP67
General data
| EAN | 4047101322798 |
| eCl@ss-Code (V5.1.4): | 19170130 -/- Netzwerk-Switch (allgemeine Anwendung) |
| Customs tariff number | 85176200000 |
| Country of origin | US |
| Weight | 718.041 g |
Technical Data
| Device type | Ethernet switch |
| Fieldbus connection technology | M12 × 1 female connector, 4-pin, D-coded |
| Transmission rate Ethernet | 10/100 Mbps |
| Number of Ethernet ports | 5 ports |
| Connection technology Ethernet | 5 × M12, 4-pin, D-coded |
| Ambient temperature | -40…+75 °C |
| Protection class | IP67 |
