Product  FCS-M18-LIX

Flow Monitoring

Immersion Sensor with Integrated Processor

Ident. no.: 6870707
    • Flow sensor for gaseous media
    • Calorimetric principle
    • Adjustment via potentiometer
    • Power-on LED
    • Nickel-plated brass sensor
    • DC 3-wire, 19.2…28.8 VDC
    • 4…20 mA analog output

General data

EAN 4047101175110
eCl@ss-Code (V5.1.4): 27273190 -/- Flow meter (not classified)
Customs tariff number 90261021000
Country of origin DE
Weight 211 g

Technical Data

Function Flow monitoring
Design Immersion

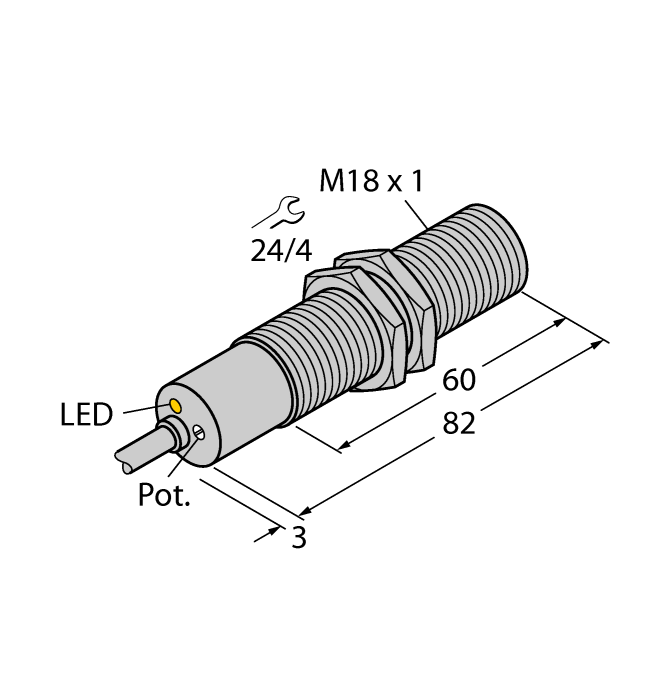

Process connection M18 × 1
Medium gases
Operating principle Calorimetric
Operating voltage 19.2…28.8 VDC
Output function Analog output
Current output 4…20 mA
Electrical connection Cable
Cable length (L) 2.0  m
Sensor material Brass
Housing material Metal, CuZn
Medium temperature -20…+70 °C
Ambient temperature -20…+70 °C
Protection class IP67
Approvals UL
