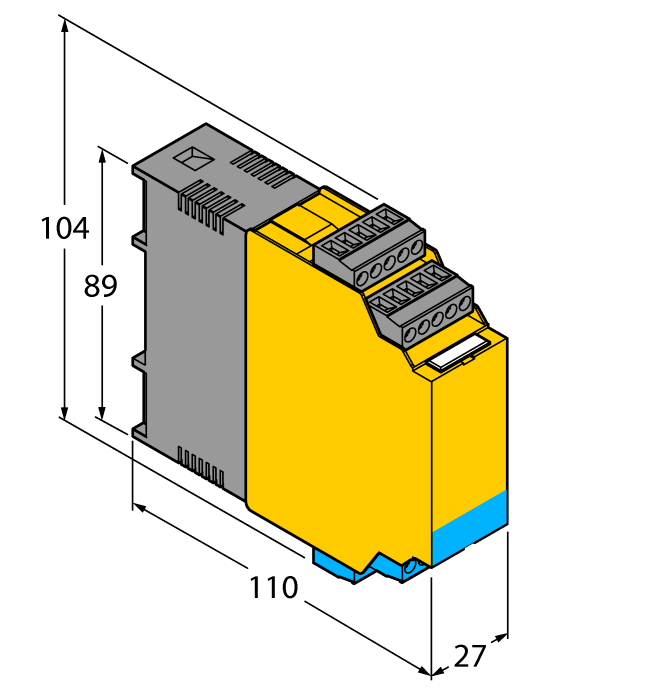

Product  FMX-IM-3UP63X

Processor Unit

For the Connection of FCS/FCI Product Series Ex Flow Sensors (NAEX)

IO-Link Device with Transistor Switching Outputs

Ident. no.: 7525101
    • For Ex ia resp. Ex ib sensors
    • Transistor outputs for flow, temperature and faults
    • Adjustment of switchpoint, no teaching of flow boundaries (QuickTeach)
    • LED band for indication of flow speed and media temperature
    • Monitoring of operating and display range
    • Detection of wire-break and short-circuit on the sensor side
    • Standard IO or IO-Link operating mode
    • Parametrized via pushbutton or software-supported via IO-Link
    • Associated equipment [Ex ia Ga/Da]
    • Connection of flow probes Zone 0/20
#
Hide All Open All

General data

EAN 4047101260540
eCl@ss-Code (V5.1.4): 27250312 -/- Communication interface, active
Customs tariff number 85371091990
Country of origin DE
Weight 231 g

Technical Data

Function Flow monitoring
Design Signal processor
Operating voltage 20…30 VDC
Output function NO/NC programmable, PNP
Communication protocol IO-Link
Electrical connection Terminal block
Housing material Plastic, Polycarbonate/ABS
Ambient temperature -25…+70 °C
Protection class IP20
Approvals ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, KOSHA, cULus, IECEx

Connectivity accessories

IOL-COM/3M

IO-Link communication line for connecting IO-Link devices to an IO-link master via a 3.5-mm jack plug

 7525110
USB-2-IOL-0002

IO-Link Master with integrated USB port

 6825482

Functional accessories

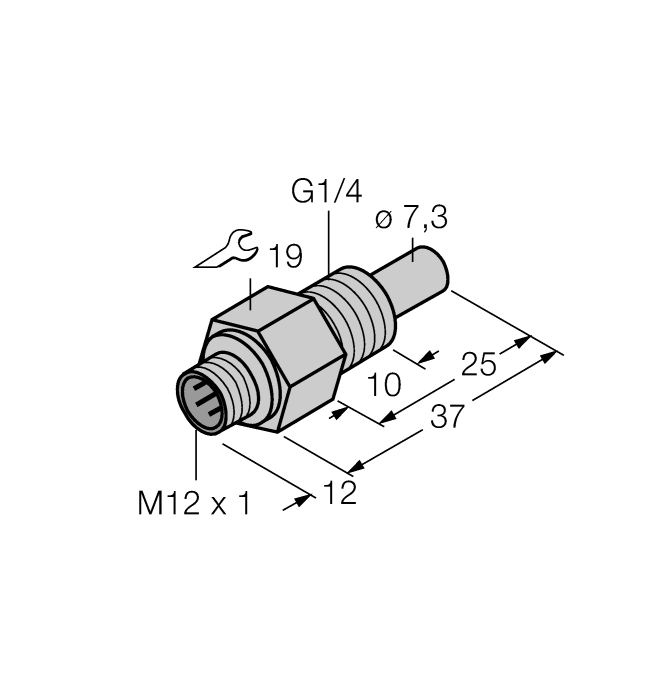

FCS-G1/4A4-NAEX-H1141

Ex flow sensor according to category II 2 G for liquid media

 6870341
