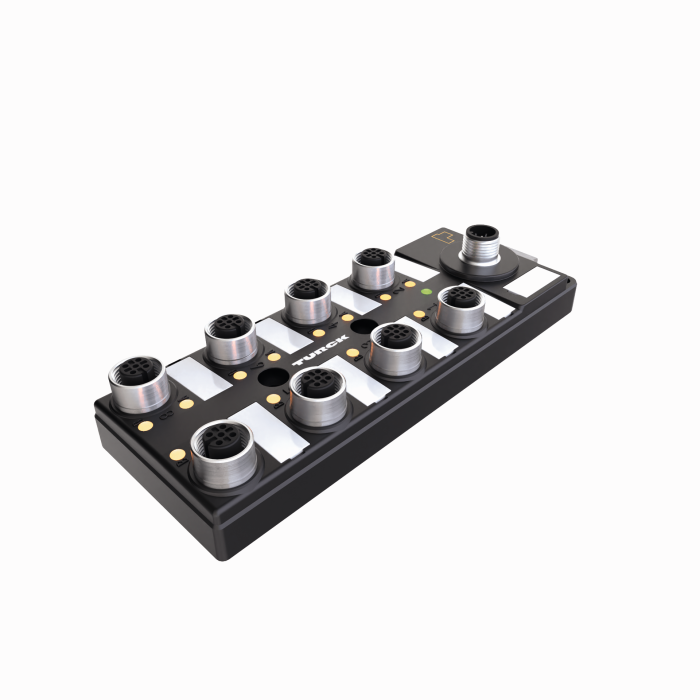

Product TBIL-M1-16DXP-B
I/O hub for connection of digital signals to IO-Link master
16 universal digital channels, PNP
Ident. no.: 100000881- IO-Link diagnostics for short-circuit and supply voltage
- IO-Link V1.1 Class B
- 2 universal digital channels per port
- Galvanic isolated Class B to support safeness
- I&M data to support identification
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- Galvanically isolated class B supply supports passive safety
- ATEX Zone 2/22
- CCC-Ex
- 2 universal digital channels per slot
- I&M data sets support installation and maintenance
- IO-Link diagnostics for short circuit and supply voltage
General data
| EAN | 4047101444964 |
| eCl@ss-Code (V5.1.4): | 27250307 -/- Technology module (periphery) |
| Customs tariff number | 8536908530 |
| Country of origin | MX |
| Weight | 301 g |
Technical Data
| Fieldbus Protocol | IO-Link |
| Signal type | Digital output, Digital input, Digital input/output |
| Connection technology signal | M12 |
| Device type | I/O hub, I/O Module, Compact station |
| Ambient temperature | -40…+70 °C |
| Protection class | IP65/IP67/IP69K |
| Approvals | ATEX Zone 2/22, cULus, IECEx, CCC |
