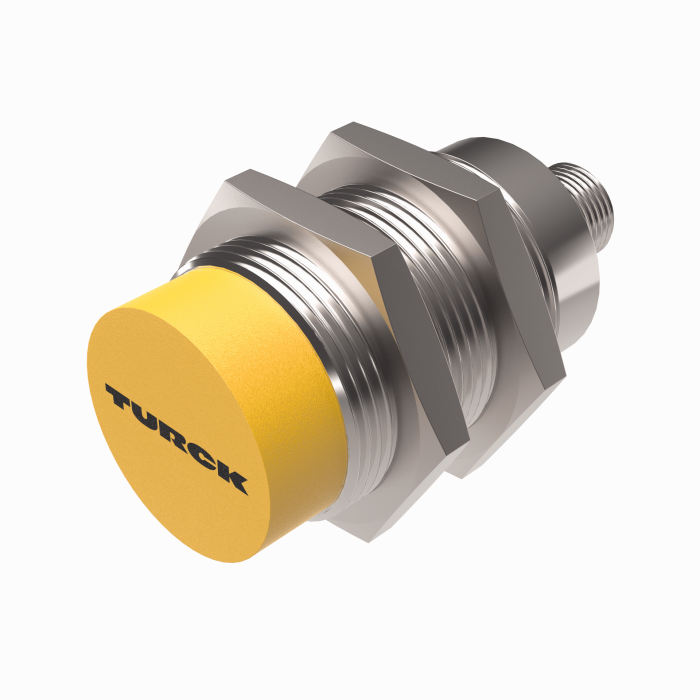

Product TN-M30-IOL-H1141
HF Read/Write Head
IO-Link

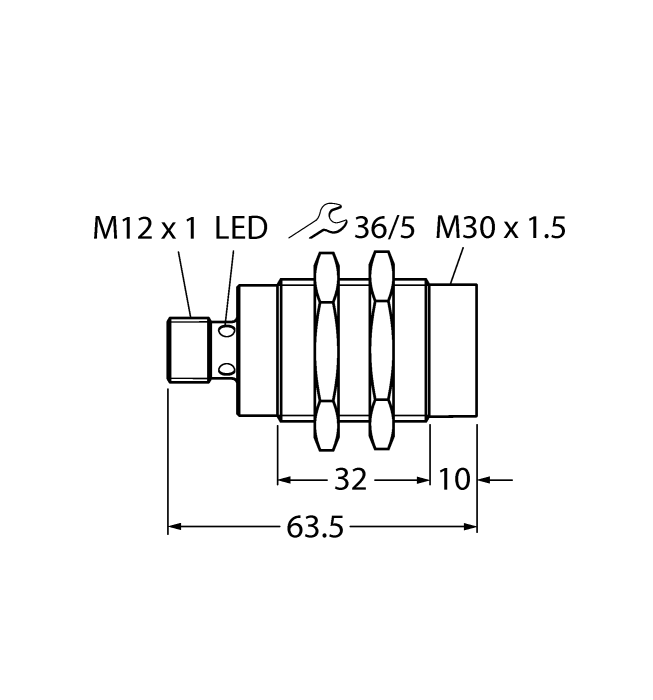

Ident. no.: 100000975- Threaded barrel, M30 x 1.5
- Chrome-plated brass
- Process value in 32-bit IO-Link telegram
- M12 × 1 male connector, 4-pin

General data
EAN | 4047101446173 |
eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
Customs tariff number | 84719000000 |
Country of origin | CH |
Weight | 136 g |
Technical Data
Technology | HF RFID |
Radio communication and protocol standards | ISO 15693, NFC Typ 5 |
Design | Threaded barrel |
Construction size | M30 x 1.5 |
Read/Write distance max. | 62 mm |
Mounting | Non-flush |
Fieldbus Protocol | IO-Link |
Housing material | Metal, CuZn, Chrome-plated |
Ambient temperature | -25…+70 °C |
Protection class | IP67 |
Data Sheets
Configuration File
Configuration Manual
Configuration Software
Instructions for Use
Manual
Quick Start Guide
Mounting accessories
![]() |

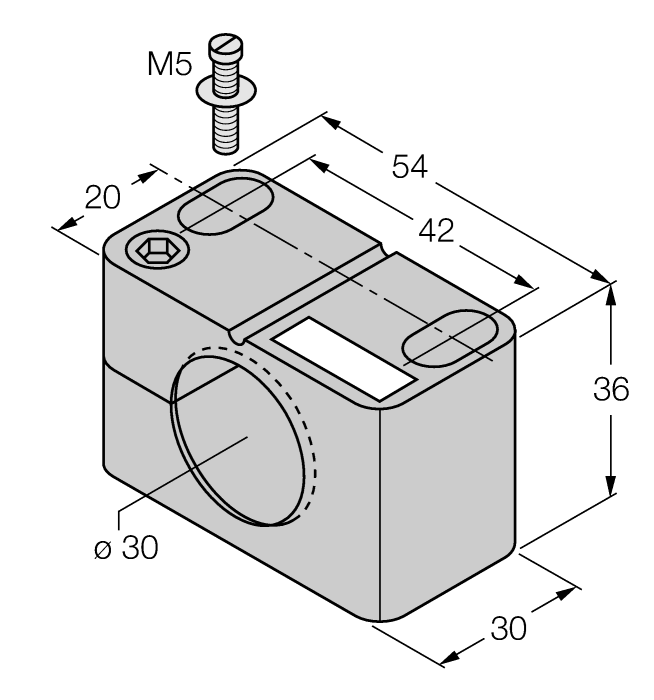

BST-30B
Mounting clamp for threaded barrel sensors, with dead-stop; material: PA6 |
6947216 |
![]() |
BST-30N
Mounting clamp for threaded barrel sensors, without dead-stop; material: PA6 |
6947217 |
![]() |
BSS-30
Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene |
6901319 |
Functional accessories
![]() |
TBEN-S2-4IOL
Compact multiprotocol I/O module, 4 IO-Link Master 1.1 Class A, 4 universal PNP digital channels 0.5 A |
6814024 |
