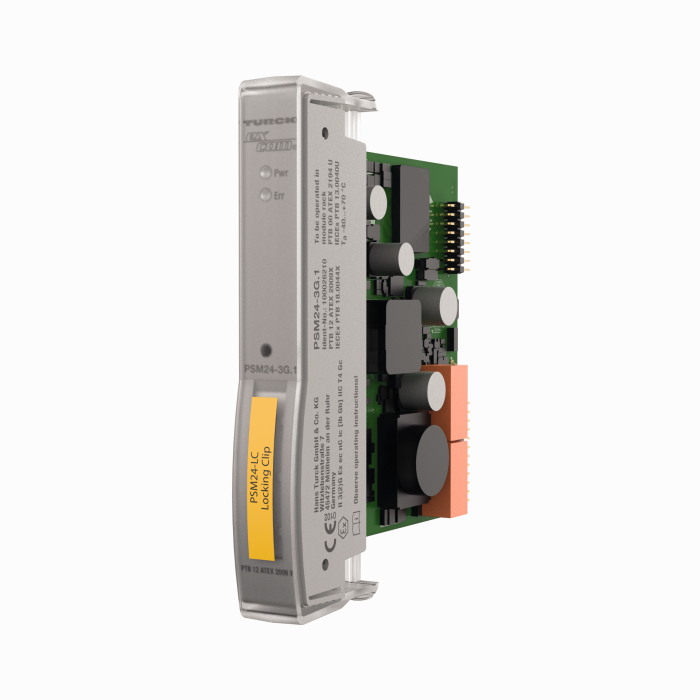

Product PSM24-3G.1
excom I/O System
Power Supply Module, 24 VDC, Zone 2
Ident. no.: 100026210- DC power supply module, supplies a module rack in Zone 2
- Switch on/de-energize using the provided locking clip PSM24-LC
- The knurled screw must be removed from the module rack!
General data
| EAN | 4047101536737 |
| eCl@ss-Code (V5.1.4): | 27250311 -/- Power supply (decentralized periphery) |
| Customs tariff number | 85044083900 |
| Country of origin | DE |
| Weight | 163 g |
Technical Data
| Fieldbus Protocol | PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET |
| Signal type | Power supply |
| Connection technology signal | Screw terminal, Cage clamp terminal |
| Device type | Power Supplies |
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, cFMus, cFM, IECEx, KOSHA, UKCA, CE |
