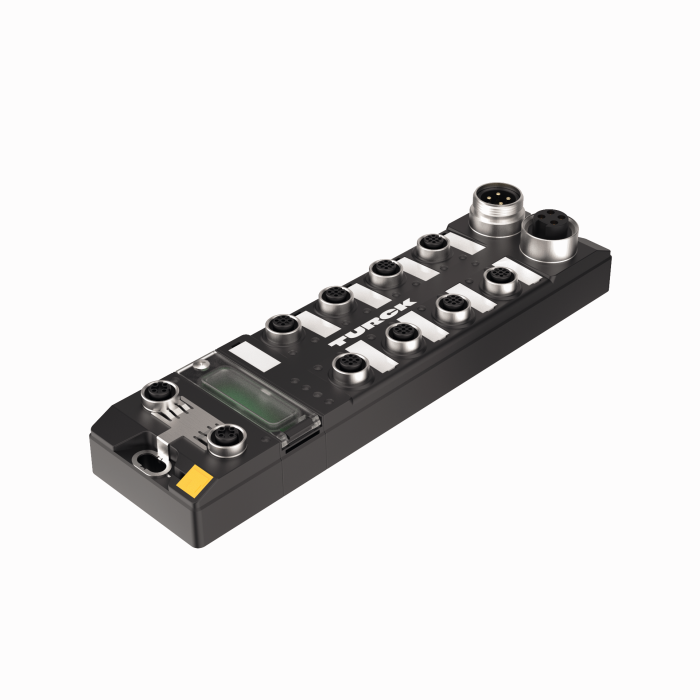

Product  TBEN-L4-8IOLA

Compact Multiprotocol I/O Module for Ethernet

8 IO-Link Master Channels

16 Universal Digital PNP Channels, Channel Diagnostics

Ident. no.: 100028459
    • PROFINET device, EtherNet/IP device or Modbus TCP slave
    • Integrated Ethernet switch
    • Supports 10 Mbps/100 Mbps
    • 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
    • PROFINET S2 system redundancy
    • Glass fiber reinforced housing
    • Shock and vibration tested
    • Fully potted module electronics
    • Protection classes IP65, IP67, IP69K
    • 4-pin 7/8″ male connector for power supply
    • ATEX Zone 2/22
    • 5-pin M12 slots for IO-Link master
    • IO-Link master port class A
    • IO-Link protocol 1.1
    • Programmable ARGEE

General data

EAN 4047101540697
eCl@ss-Code (V5.1.4): 27250302 -/- Digital I/O module (periphery)
Customs tariff number 85176200000
Country of origin DE
Weight 555 g

Technical Data

Fieldbus Protocol Modbus TCP, EtherNet/IP, PROFINET
Signal type IO-Link, Digital output, Digital input/output, Digital input
Connection technology signal M12
Device type I/O Module, Compact station, Field Logic Controller (ARGEE)
Fieldbus transmission rate 10/100 Mbps
Fieldbus connection technology 2 x M12, 4-pin, D-coded
Ambient temperature -40…+70 °C
Protection class IP65/IP67/IP69K
Approvals cULus

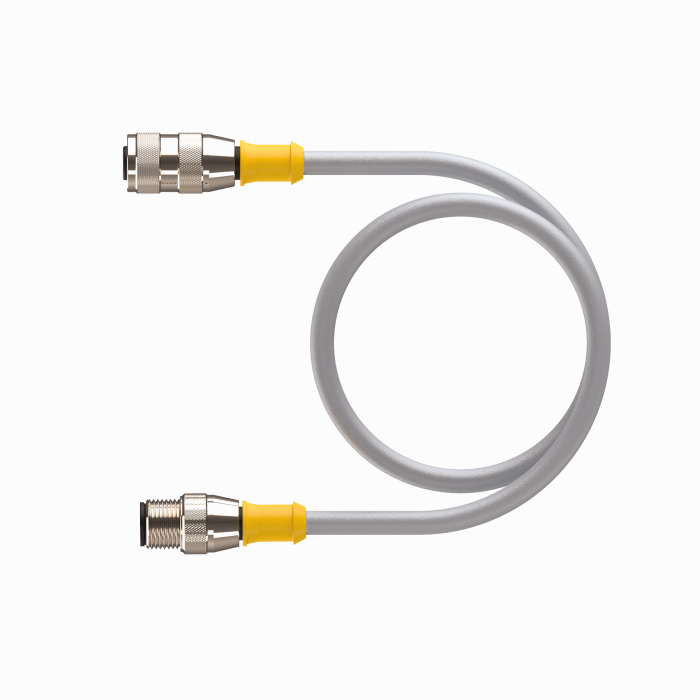

Connectivity accessories — I/O

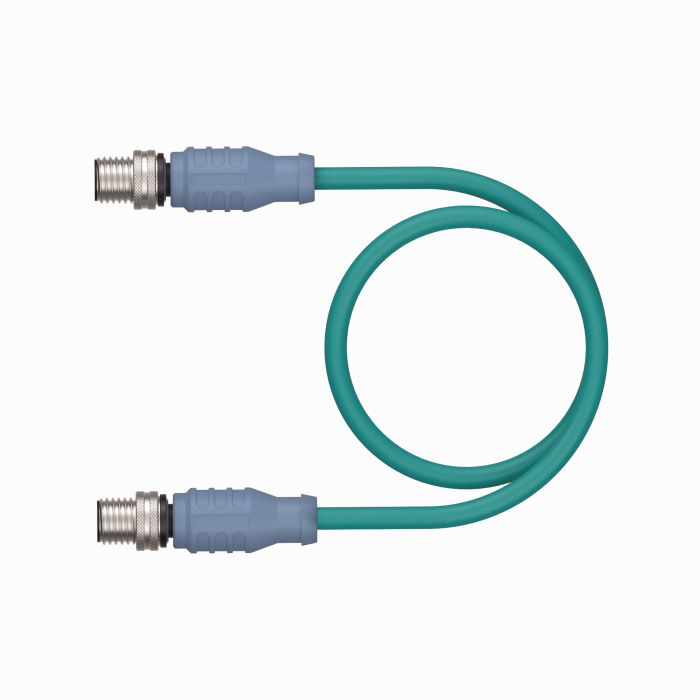

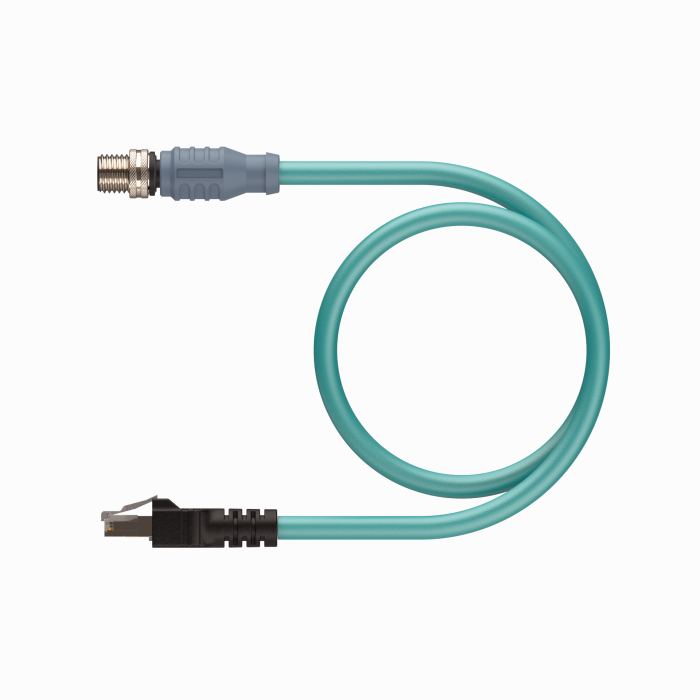

Connectivity accessories — Network
