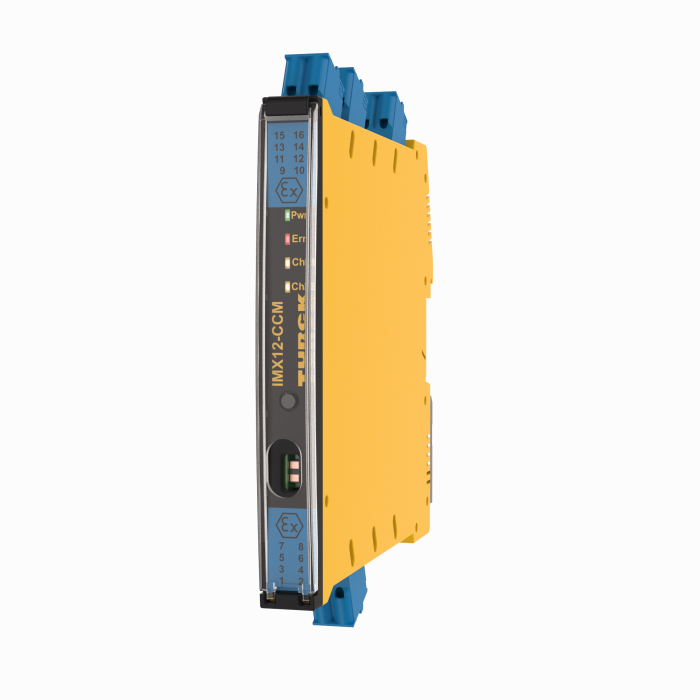

Product IMX12-CCM05-MTI-1I2T-HC/L/CC
Cabinet Guard
Internal Sensors
Ident. no.: 100030580- 2 potential-free contacts
- Temperature detection
- Moisture detection
- Detection of distance to control cabinet door
- Galvanic isolation of outputs (A1/A2)
- Removable spring-type terminals
- ATEX, IECEx
General data
| EAN | 4047101558470 |
| eCl@ss-Code (V5.1.4): | 27189253 -/- Überwachungssystem (Schaltschrank) |
| Customs tariff number | 8470290000 |
| Country of origin | DE |
| Weight | 135 g |
Technical Data
| Device type | Cabinet guard |
| Ex version | yes |
| Approvals | ATEX, IECEx |
| Nominal voltage | 24 VDC |
| Electrical connection | Removable spring-type terminals, 2-pin |
| Protection class | IP20 |
| Product series | IM(X)12 |
Data Sheets
Approval
Brochure/Folder/Flyer (BRO)
Configuration Software
EU Declaration of Conformity
Instructions for Use
Product Catalog
Product Flyer
Quick Start Guide
Mounting accessories
|
IMX12-SC-2X-4BK
Screw terminals for IM(X)12 modules; included in delivery: 4 pcs. of 2-pin black terminals |
7580940 | |
|
IMX12-SC-2X-4BU
Screw terminals for IM(X) 12 modules; included in delivery: 4 pcs. of 2-pin blue terminals |
7580941 | |
|
IMX12-CC-2X-4BK
Spring terminals for IM(X)12 modules; included in delivery: 4 pcs. black terminals, 2-pin |
7580942 | |
|
IMX12-CC-2X-4BU
Spring terminals for IM(X)12 modules; included in delivery: 4 pcs. blue terminals, 2-pin |
7580943 |
