Product NI4-Q12-AZ31X
Inductive Sensor
Ident. no.: 13102- Rectangular, height 12mm
- Active face, lateral
- Plastic, PA12‐GF30
- AC 2-wire, 20…250 VDC
- DC 2-wire, 10…300 VDC
- NO contact
- Cable connection
General data
| EAN | 4047101065886 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 9026104000 |
| Country of origin | DE |
| Weight | 99 g |
Technical Data
| Design | Rectangular |

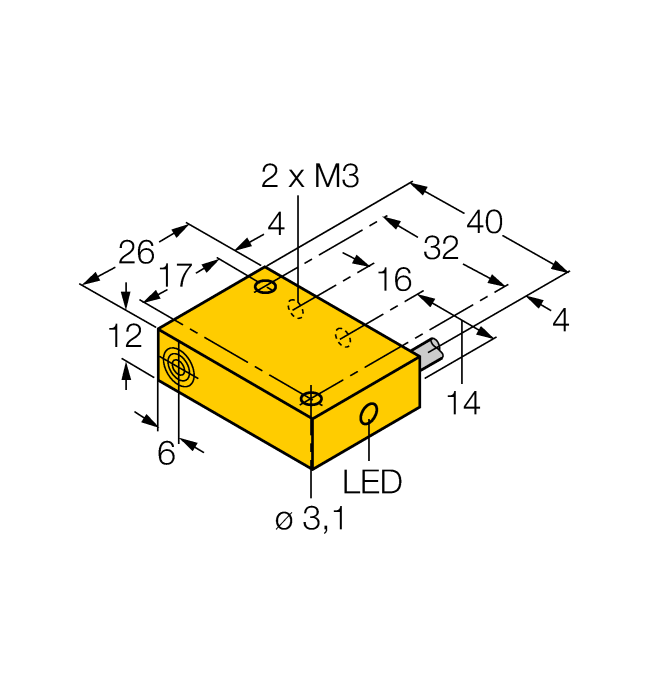

| Construction size | 40 x 26 x 12 mm, Q12 |
| Rated switching distance | 4 mm |
| Mounting | Non-flush |
| Operating voltage | 20…250 VAC / 10…300 VDC |
| Output function | NO contact, 2-wire |
| Switching frequency | 0.020 kHz |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Plastic, PA12-GF30 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
